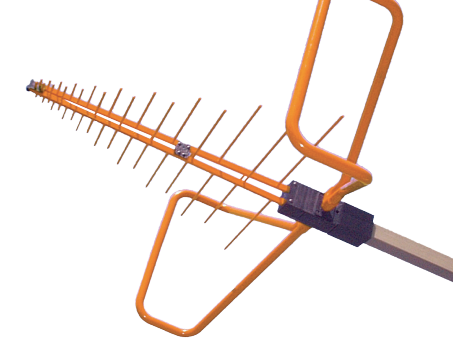

Amplifier Research SunAR JB6 BiLog Antenna | 30 MHz - 6 GHz
SunAR RF Motion's JB Series antennas are compact, high-performance EMC test antennas with a frequency range of 30 MHz to 6 GHz, designed for radiated emissions and immunity testing, including pre-scan and full compliance. They offer a gain of 7 dBi, a nominal impedance of 50 ohms, and feature a Type N female connector with a VSWR of less than 2:1 above 200 MHz. These antennas are built for durability, with a custom aluminum extrusion boom for strength, dual compression wing mounts, and an orange powder coat finish with UV inhibitors for protection.
| Frequency Range | 30 MHz – 6 GHz |
| Impedance | 50 Ω (nominal) |
| VSWR | <2:1 above 200 MHz |
| Polarization | Linear |
| Imbalance | Less than 1 dB |
| Connector | Type N Female |
| Wing Span | 44 in |
| Dimensions (L x W) | 51 in x 19 in |
| Weight | 10 lb. |
- Part of the AR JB Antenna Series
- Nominal impedance of 50 ohms
- Type N Female connector
- Stainless steel mounting tube
- Radiated Emissions
- Radiated Immunity
- Pre-Scan / Full Compliance
SKU: AMPL-JB6
