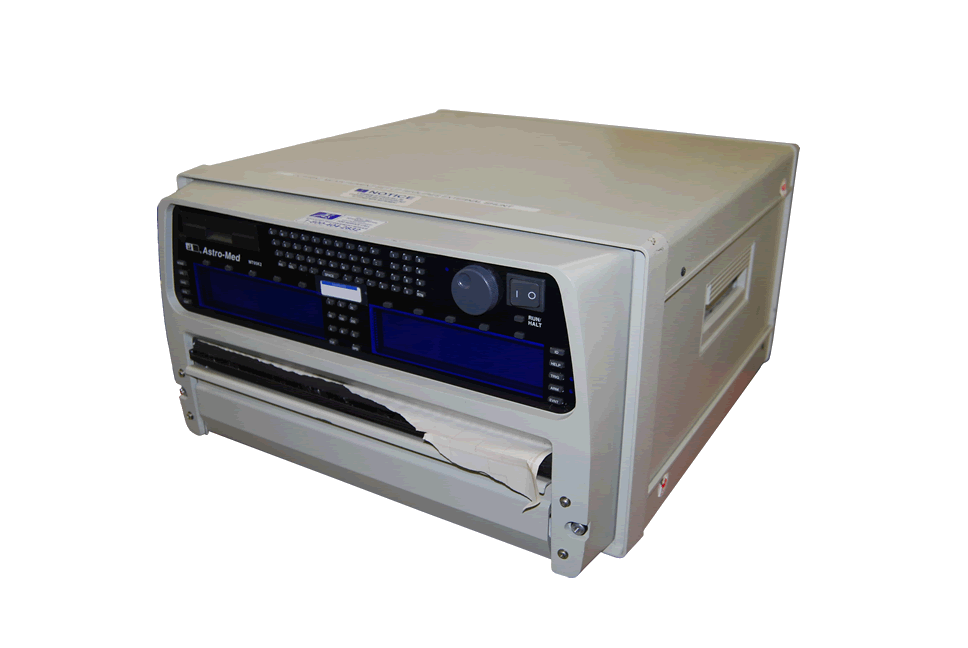

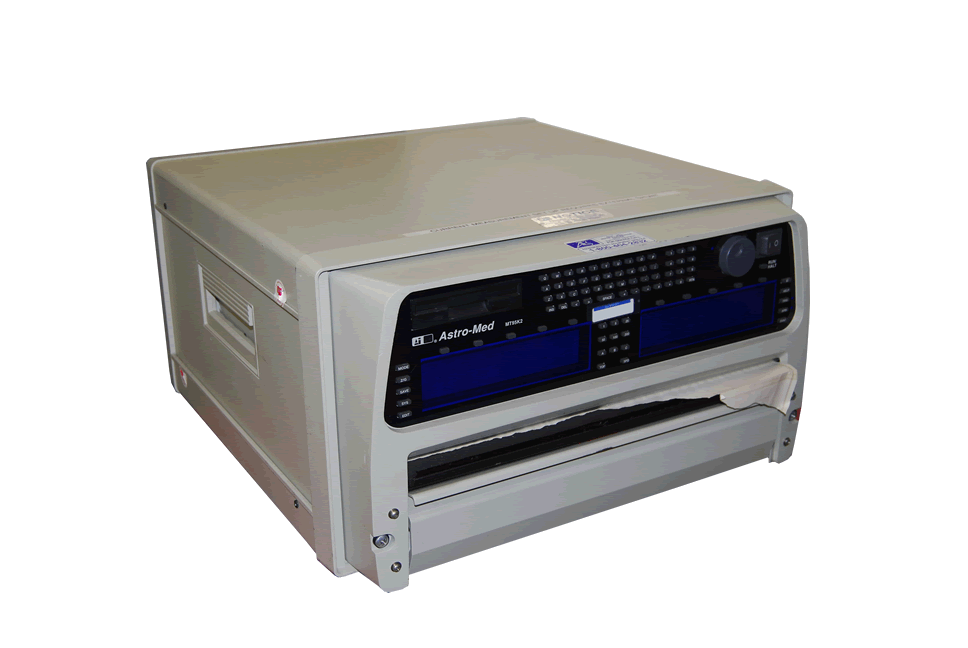

8 - 32 Channel Strip Chart / Waveform Recorder
Features
- No delay...see full traces on monitor while recording
- Personal Chart Setups with on-board floppy drive
- Laser Printer Chart Resolution - 300 dpi; crisp traces
- Data Capture - up to 32 megabytes in RAM
- 8 to 32 Waveform Channels - plus 64 events; DC to 20kHz; chart speeds to 500 mm/sec
Specifications
| Recording Method | Direct writing thermal array |
| Real Time Speeds | 1 mm/hr to 200 mm/hr in steps of 1 mm/hr |
| 1 mm/min to 200 mm/min in steps of 1 mm/min |
| 1 mm/sec to 500 mm/sec in steps of 1 mm/sec |
| Chart Type and Size | Z-fold pack - 16.3" wide, 393 ft. long, 400 sheets per pack |
| Data Sample Rate | Up to 200 kSamples/sec per channel |
| Waveform Channels | Max. Number of Channels: | 32 |
| Nominal Bandwidth: | 20 kHz |
| Real Time Recording Formats | Standard Default: | 8 waveforms with 8 channel label buffers in both overlap and separate channel mode |
| Disk Based Formats: | A variety of 8, 16 and 32 waveform chart formats are supplied on a 3.5" DOS compatible disk which comes standard with all units |
| Data Logger: | Numeric reporting of waveform data in engineering units |
| Annotation | System Log Channel |
| Waveform ID |
| Waveform Annotation |
| Signal Conditioner |
| Computer Interfaces | RS-232C Serial Interface |
| GPIB (IEEE-488) |
Options
Analog Waveform Module - Model AWP1
| Number of Channels | 4 per module |
| Max Number of Modules | 8 per MT95K2 |
| Maximum Input | 250 VDC or RMS |
| Measurement Range | 50 mV full scale to 250 V full scale |
| Input Type | Isolated |
| Operating Mode | DC or RMS |
| Analog Bandwidth | 20 kHz |
| Auto-Range | Supports automatic gain and offset adjustment to make a reference signal full scale |
