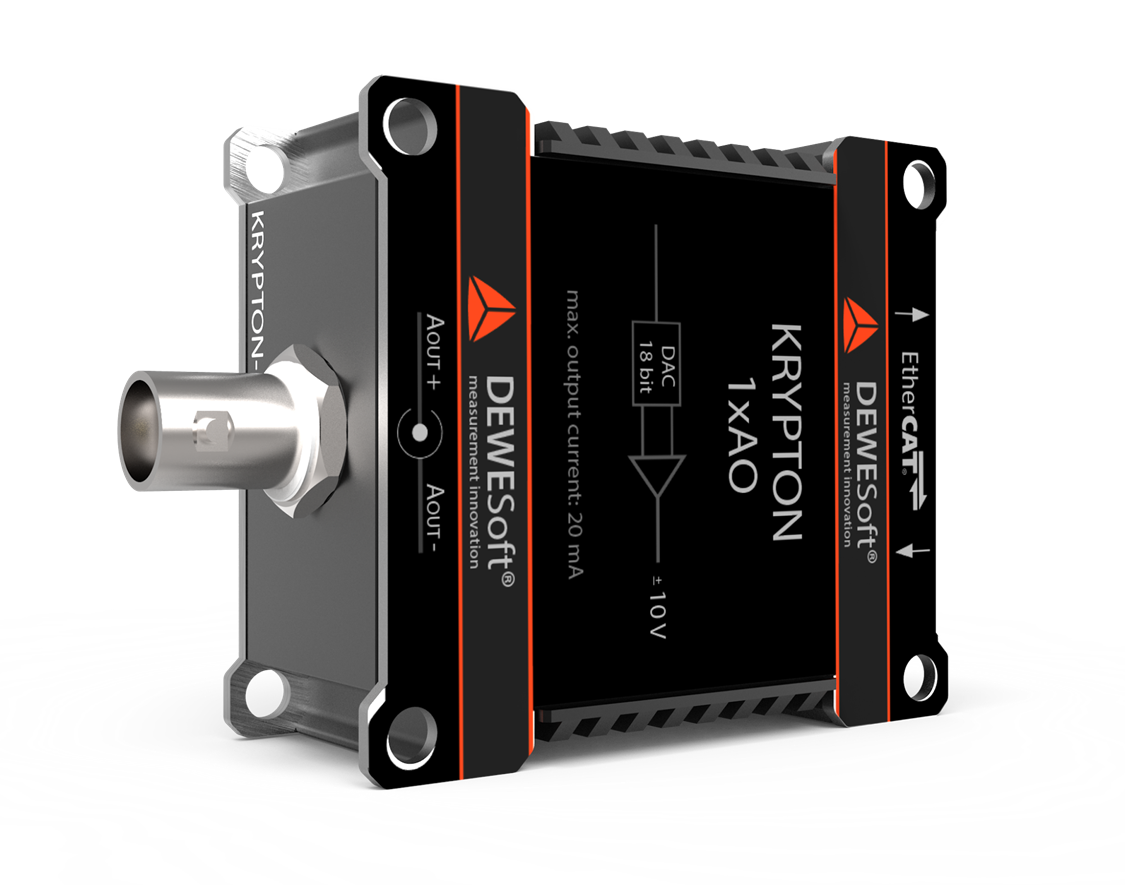

Dewesoft KRYPTON-1xAO Analog Output Module

Single-Channel, 18-bit DAC

The Dewesoft KRYPTON-1xAO is a single-channel analog output module with an 18-bit DAC and a ±10 V output range. It supports functions such as file replay, conditioned analog input output, function generation, and channel output. The module offers a 20 kS/s update rate, 4 kHz analog bandwidth, and 0.1% ±1 mV accuracy, with short circuit protection and a maximum output current of 20 mA. It connects via a BNC interface and operates on 9–48 V DC with IP65/IP67 environmental protection.

Product Info Related Products

Channels	1
Output Type	Voltage
DAC Resolution	18-bit
Full Scale Output Range	±10 V
Update Rate	20 kS/s (5 kS/s with 3rd-party master)
Analog Output Bandwidth	4 kHz
Accuracy	0.1 % ±1 mV (0 to 20 mA load)
Signal-to-Noise Ratio	92 dB (at 1000 S/s, 250 Hz, ±9 V sine)
Total Harmonic Distortion (THD)	−90 dB
Output Impedance	0.45 Ω DC
Max Output Current	20 mA
Settling Time	30 μs (0.05 % of set value, 1000 Ω load, −10 V to +10 V step)
Slew Rate	2.5 V/μs @ 1000 Ω load
Max Capacitive Load	10 nF (2 % overshoot)
Max Load	500 Ω
Output Protection	Short circuit protected
Connector	BNC
