HP Agilent 60502B DC Electronic Load 3 V - 60 V, 60 A, 300 W

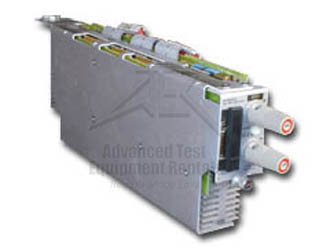

HP/Agilent 60502B 300 Watt DC Electronic Load Module
Enlarge Image
Request Quote Print Page
Datasheet

The Agilent 60502B module along with the dc electronic load mainframe are ideal for the test and evaluation of dc power sources and power components and are well suited for applications in areas such as research and development, production, and incoming inspection. Each module includes programming inputs that allow control of load current via an analog control voltage.



Features:


  • Analog voltage control in constant current mode
  • Full protection from over-current, over-voltage, overpower, over-temperature, and reverse polarity



Performance Characteristics:


Form Factor Module (proprietary interface/bus)
Type DC
Maximum Power 300 Watts
Minimum Voltage 3 V
Maximum Voltage 60 V
Maximum Current 60 A
Current Ripple and Noise 4 mArms
Voltage Ripple and Noise 6 mV
Constant Current Mode Yes
Constant Voltage Mode No
Constant Power Mode No
Constant Resistance Mode No
Transient Generator No
