Keysight 8562A Spectrum Analyzer

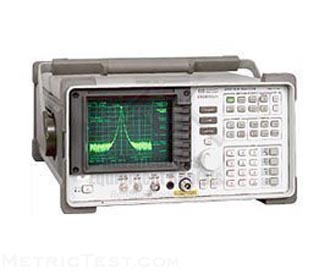

HP Agilent 8562A Spectrum Analyzer
Enlarge Image

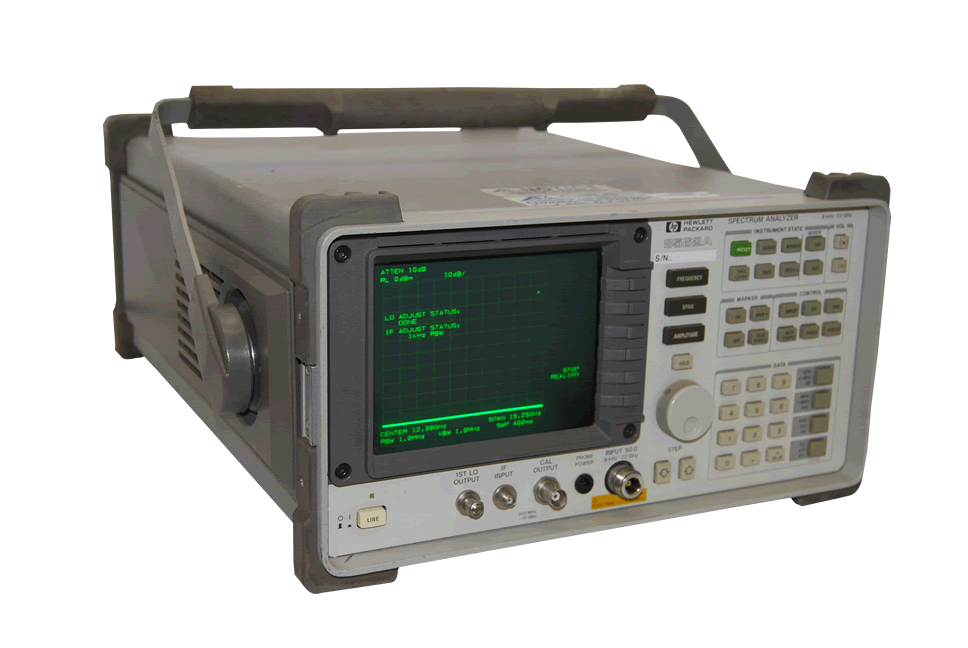

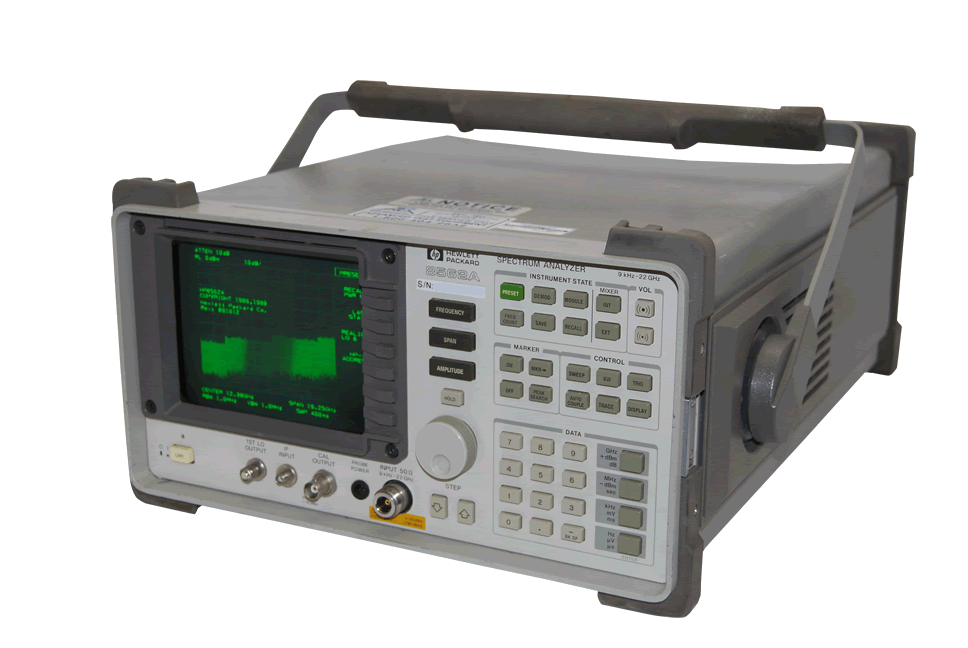

HP Agilent 8562A Spectrum Analyzer HP Agilent 8562A Spectrum Analyzer
Keysight 8562A
Request Quote Print Page
Datasheet Specifications
9 kHz - 26.5 GHz Spectrum Analyzer

Keysight 8562A Specs
Keysight Model Frequency Range (GHz)
11970K 18-26.5
11970A 26.5-40
11970Q 33-50
11970U 40-60

  • Frequency Range: 1 kHz to 22 GHz (extendable to 26.5 with Option 026)
  • Counter Resolution: 10 Hz - 1MHz (selectable)
  •
  • Frequency Span
    Range: 0 Hz-2.5kHz x N

  • Resolution Bandwidth (-3 dB)
    Range: 100 Hz - 1MHz in a 1, 3, 10 sequence and 2 MHz
  •
  • Video Bandwidth
    Range: 1 Hz - 3 MHz in a 1, 3, 10 sequence
  • Amplitude Range: +30 dBm to displayed average noise level
  • Reference Level Range: Log, -120 to +30 dBm in 0.1 dB steps
  •
  • Displayed Average Noise Level:
    -120 dBm, 1 MHz to 2.9 GHz
    -121 dBm, 2.75 GHz to 6.46 GHz
    -110 dBm, 5.86 GHz to 13.0 GHz
    -105 dBm, 12.4 GHz to 19.7 GHz
    -100 dBm, 19.1 GHz to 22.0 GHz
  •
  • Amplitude Accuracy
    Frequency Response (flatness)
    Frequency Range:
    1 kHz - 2.9 GHz, ±1.0 dB
    2.75 - 6.46 GHz, ±1.5 dB
    5.86 - 13.0 GHz, ±2.0 dB
    12.4 - 22.0 GHz, ±3.0 dB
  •
  • Demodulation
    Modulation Type: AM and FM
  •
  • Inputs & Outputs
    Front Panel Connectors:
    RF Input: type N female, nominal impedance 50 ohms
    Second IF Input: SMA female
    First LO Output: SMA female
    Calibrator Output: BNC female
  •
Rear Panel Connectors:
10 MHz Reference (Input/Output): BNC female
Video Output: BNC female
LO Sweep/0.5 V per GHz Output: Shared BNC female
External Trigger Input: BNC female
HP-IB: Interface
Keysight 8562A Accessories

Optional Accessories:

Mass Memory Module
  • Keysight 85620A
  • 128K bytes of built-in RAM
  • store 10 downloadable programs (DLPs) or more than 100 traces
  •
Keysight 11970 Series Harmonic Mixers
  • Low conversion loss
  • Individually amplitude-calibrated
  • No bias or tuning adjustments
  • High 100 mW safe input level
