Montena GP20-01-2 High Speed Pulse Generator 20kV, 400A

Rent Montena GP20-01-2 High Speed Pulse Generator 20kV, 400A
Enlarge Image

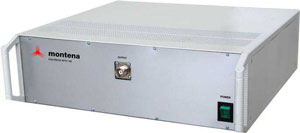

Montena GP20-01-2
Request Quote Print Page
Datasheet
The Montena GP20-01-2 High Speed Pulse Generator 20kV, 400A has a very short rise time pulse generator use only solid state switches. The peak output voltage can reach 5, 20 or 30 kV on 50 ohm. A BNC 50 ohm connector produces triggering signals when the generator is internally triggered (internal mode). When the generator is in external mode, the HV pulse is only delivered when a synchronization signal is present at this connector. In internal trigger mode, the repetition frequency is adjustable by a rotary knob up to 10 kHz, respectively 1 kHz. The output voltage is also adjustable by a rotary knob.

Montena GP20-01-2 Specs
Maximum Output Voltage: 20 kV (on 50 ohm)
Peak Current: 400 A (on 50 ohm)
Impedance: 50 ohm
Rise time 15 - 95 %: 130 ps +/- 10 ps
Pulse width at 50 %: 600 ps +/- 100 ps
Jitter: 30 - 40 ps
Pulse repetition freq.: ≤ 10 kHz
Lifetime of the generator: > 1011 pulses
Max. power into the load: 50 - 70 W (at 10 kHz)
Connector type: HN (other on request)
Triggering: internal or external
BNC connector 50 ohm
Trigger signal: TTL, rise time 5-10 ns,
pulse width 0.1-1 us
