Rent Phenix Technologies 475-20 Portable DC Hipot 75 kVDC
Enlarge Image

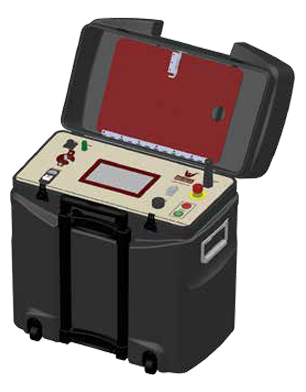

Phenix Technologies 475-20
Request Quote Print Page
475-20 Datasheet
Phenix Technologies 475-20 Portable DC Hipot 75 kVDC is lightweight, compact, and ruggedly built for use in the lab or field for accurate testing of electrical switchgear, cables, motors, generators, and protective equipment. It includes many advanced features including high accuracy digital meters, analog charging current meter, adjustable overcurrent, and increased output current ratings.
Phenix Technologies 475-20 Features
  • Large, easy to read, high accuracy digital meters
  • "Zero Start" Interlock
  • Output voltage continuously adjustable
  • Adjustable overcurrent trip point from 10%-110% of each current range
  • Input Circuit Breaker/Power Switch
  • Analog 0-100% of range current meter for visual charge indication
  • Built in discharge circuit Thermal resettable overload
  • Removable line cord Integrated cable storage bin
  • Line weight, portable and enclosed in rugged, polyethylene carrying case
Phenix Technologies 475-20 Specs
Input: Voltage/Current 110-120 V, 10 A
220-240 V, 5 A
Frequency 50/60 Hz
Output: Voltage/Current 0-75 kV, 20 mA
Ripple <2%
Polarity negative output, positive ground
