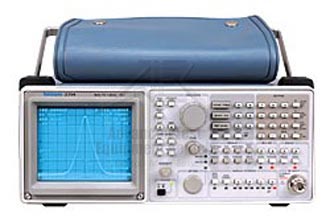

Tektronix 2714 Cable TV Spectrum Analyzer

Tektronix 2714 Cable TV Spectrum Analyzer
Enlarge Image
Request Quote Print Page
Datasheet

Features

  • Built-in Automatic Cable TV Measurements
  • Addresses all Field FCC Proof-of-Performance Requirements
  • Quick-change 75 ohm F and BNC Input Connectors
  • Built-in Preamp, Audio, and AM/Wideband FM Video Demodulator
  • Capitalizes on PC Power - PC-based software package
  • Channel Table Generator
  • High-level Test Sequences
  • Report Generator
  • Historical Database
  • Remote Control

Cable TV Measurements

  • Channel Selection
  • Visual Carrier Frequency
  • Visual-to-Aural Carrier Frequency
  • Visual Carrier Peak Level
  • Visual-to-Aural Carrier Level Difference
  • Modulation Depth
  • Hum/Low-Frequency Disturbance
  • Carrier to Noise
  • CTB/CSO
  • Frequency Response
  • In-Channel Response
  • Carrier Survey
  • Aural (FM) Deviation
  • Cross Modulation
  • Listen Mode
  • View Picture Mode
  • View Modulation (Field)
  • View Modulation (Line)

Spectrum Analyzer Specifications Summary

  • Frequency Range: 9 kHz to 1800 MHz
  • Resolution Bandwidth: 5 MHz, 1 MHz to 300 Hz in 1-3 sequence
  • Maximum Sensitivity (at 300 Hz RBW): -78 dBmV (-127 dBm); -90 dBmV (-139 dBm) with preamp on
  • RF Input: 75 ohm BNC with quick change to 75 ohm type F connector
  • Also available with battery kit and tracking generator



Optional

  • Tektronix 2705 Battery Pack
  • Tektronix 2704 Inverter
  • Tektronix 2707 - Tracking Generator
