Teseq NSG 4070-75 Conducted & Radiated Immunity Test System

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery
Teseq NSG 4070-75 Conducted & Radiated Immunity Test System Larger

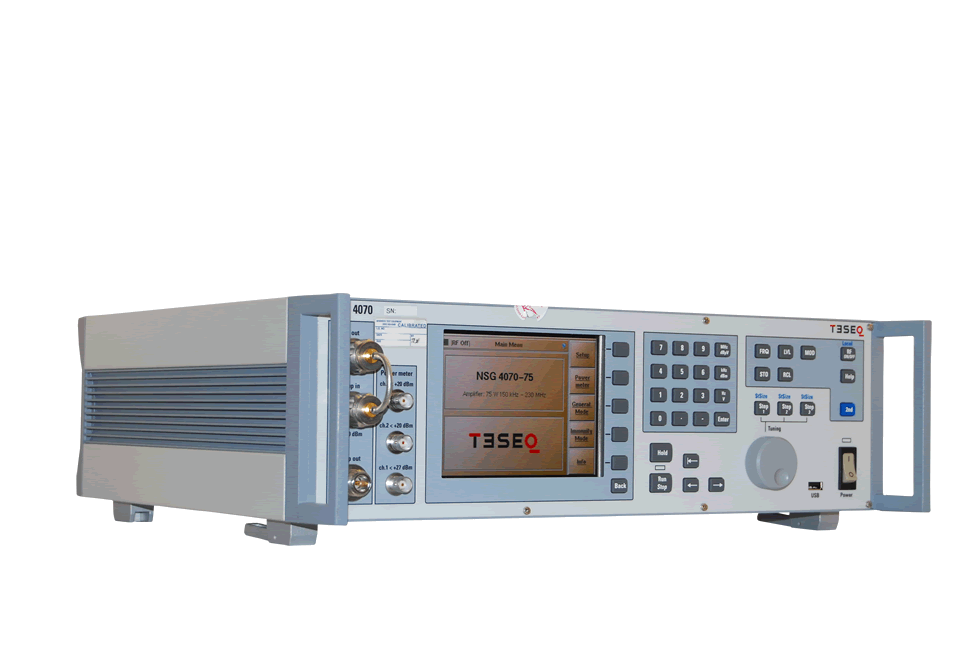

Teseq NSG 4070-75 Conducted & Radiated Immunity Test System

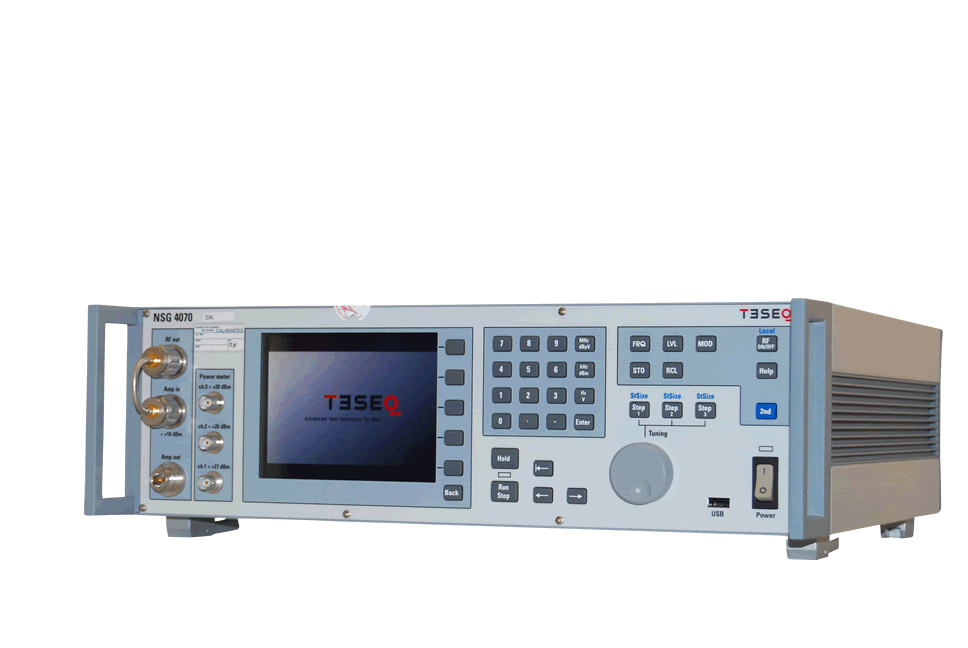

Teseq NSG 4070-75 Conducted & Radiated Immunity Test System
Categories
  • Conducted LF RF Immunity
    Conducted LF RF Immunity
  • Military & Aerospace Transient Generators
    Military & Aerospace Transient Generators
Documents
  • Accessory Kit
  • Datasheet
  • Manual
  • Print
  • Email

This product has been discontinued.

View the Teseq NSG 4070B Test System for Conducted and Radiated Immunity

The NSG 4070, successor of the NSG 2070, is a multifunctional EMC immunity test system. Its large frequency range from 9kHz to 1GHz and its modular set-up using internal or external amplifiers enable a large variety of applications including tests according to IEC 61000-4-6, MIL-STD 461, various BCI applications as well as signal generator and power meter for test systems as per IEC 61000-4-3, IEC 61000-4-20, IEC 61000-4-21 and many other applications.

The powerful and easy to use firmware makes the NSG 4070 independent from an external PC and control software, however it can also be remote controlled for system operation. A state-of-the-art data transfer of test and measurement data for documentation is provided by USB stick to be plugged into the front panel.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Integrated signal generator 9kHz to 1GHz
  • 4-channel power meter 9kHz to 1GHzAn advanced combination of signal generator and compact immunity test system.
  • Integrated power amplifier module for different
  • frequency ranges up to 1GHz and up to 75W
  • nominal output power
  • Multiple EUT monitoring options
  • Internal, menu-based control software
  • 5,7“ TFT color display
  • Optional remote control software
Specifications
RF:
Frequency range 9 kHz-1 GHz
Resolution 0,1 Hz
Reference frequency 20 MHz internal, 10 MHz Reference output
RF Level:
Level range -60 dBm to +10 dBm
Resolution 0,1 dB
Settling time < 120 µs (10kHz bandwidth)
NF-Generator:
Frequency range 1 Hz - 50 kHz
Frequency resolution 1 Hz
Amplitude modulation:
Modulation depth 0-100%
Modulation frequency range 1 Hz - 50 kHz
Pulse modulation:
Rise / fall time (10% / 90%) < 1 µs
Modulation frequency range 1 Hz - 50 kHz / 50% duty cycle
External modulation:
Delay time < 1 µs / 1800
Period min. 20 µs
Pulse width min. 10 µs



Power Amplifier Specifications
Nominal output power: 75W
Frequency range: 150 kHz - 230 MHz
Input impedance: 50 ohms
Output impedance: 50 ohms
Input return loss min.: 10 dB
Output return loss: nom. min. 9,5 dB (0 dB without damage)
Gain: min. 50 dB
Gain flatness: max. +/- 3 dB
Saturated output power: min. 48,75 dBm
Max. input power linear without damage: < -3 dBm max. +10 dBm
2nd harmonic distortion at nominal output power: typ. < -35 dBc
3rd harmonic distortion at nominal output power: typ. < -18 dBc
Applications
Options
Accessories
Standards
Media

RELATED PRODUCTS

AE Techron 3110 Standards Waveform Generator
AE Techron 3110 Standards Waveform Generator
AE Techron 7228 Linear Power Amplifier
AE Techron 7228 Linear Power Amplifier, 100kHz - 1MHz, 1000 Watts
AE Techron 7224 Linear Power Amplifier
AE Techron 7224 Power Amplifier | DC - 300kHz, 900VA
AE Techron 3110A Standards Waveform Generator
AE Techron 3110A Standards Waveform Generator
AE Techron 8302 RF Amplifier
AE Techron 8302 RF Amplifier
AE Techron T1000 Magnetic-Field Susceptibility Transformer
AE Techron T1000 Magnetic-Field Susceptibility Transformer
AE Techron T2000 Low-Frequency Conducted Susceptibility Transformer
AE Techron T2000 Low-Frequency Conducted Susceptibility Transformer
AE Techron T3700 Electric-Field Susceptibility Transformer
AE Techron T3700 Electric-Field Susceptibility Transformer
Amplifier Research CI00250A RF Conducted Immunity System
Amplifier Research CI00250A RF Conducted Immunity System
Amplifier Research CI00400A RF Conducted Immunity System
Amplifier Research CI00400A RF Conducted Immunity System
Amplifier Research CI00402 RF Conducted Immunity System
Amplifier Research CI00402 RF Conducted Immunity System
Amplifier Research MT06000 Multistar Multi-tone RF Radiated Immunity System 80 MHz - 6 GHz
Amplifier Research MT06000 Multistar Multi-tone RF Radiated Immunity System 80 MHz - 6 GHz
BOLAB Systems BLS-130-70N-TS 4-Quadrant Voltage Amplifier
BOLAB Systems BLS-130-70N-TS 4-Quadrant Voltage Amplifier
CA Instruments MX90 90kVA Power Source and Compliance Test System
CA Instruments MX90 90kVA Power Source and Compliance Test System
California Instruments 15003iX Programmable 15 kVA Power Supply
California Instruments 15003iX Programmable 15 kVA Power Supply
California Instruments 5001iX AC/DC Power Source/Analyzer, 5 kVA
California Instruments 5001iX AC Power Source
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
California Instruments MX Compliance Test System Series
California Instruments MX Compliance Test System Series
California Instruments MX45 AC Power Source | 45 kVA, 3P
California Instruments MX45 AC Power Source | 45 kVA, 3P
Com-Power CDN-AF2 Coupling/Decoupling Network (CDN)
Com-Power CDN-AF2 Coupling/Decoupling Network (CDN)
Com-Power CDN-AF4 Coupling/Decoupling Network (CDN)
Com-Power CDN-AF4 Coupling/Decoupling Network (CDN)
Com-Power CDN-AF8 Coupling/Decoupling Network (CDN)
Com-Power CDN-AF8 Coupling/Decoupling Network (CDN)
Com-Power CDN-C75 Coupling/Decoupling Network (CDN)
Com-Power CDN-C75 Coupling/Decoupling Network (CDN)
Com-Power CDN-M125E Couplers Coaxial
Com-Power CDN-M125E Couplers Coaxial
Com-Power CDN-M225E Coupling/Decoupling Network (CDN)
Com-Power CDN-M225E Coupling/Decoupling Network (CDN)
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
