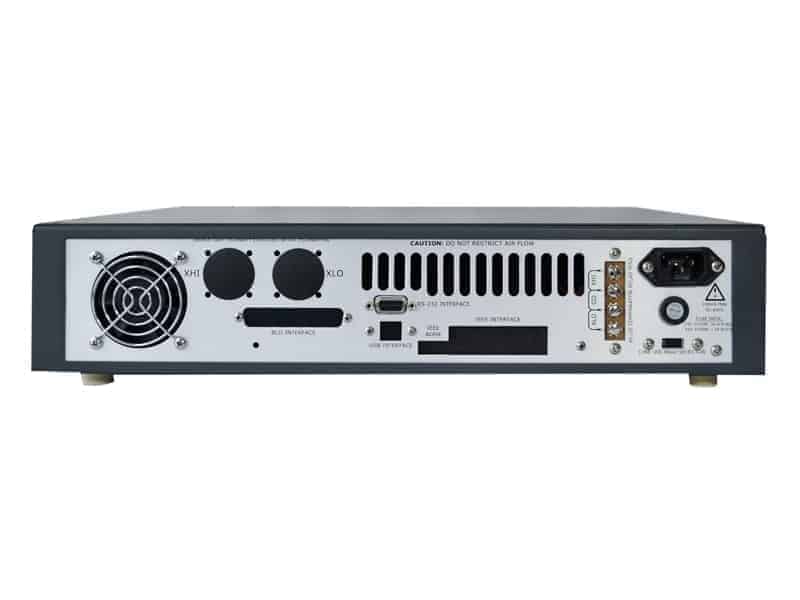

Valhalla 4300C Programmable Digital Micro-Ohmmeter

Larger

Categories

DLRO (Micro Ohmmeters)

Documents

Datasheet
Manual

The Valhalla 4300C Programmable Digital Micro-Ohmmeter is a highly accurate and easy-to-use device with a conversion rate of 45 readings per second. Ideal for ultra-low resistance testing, technicians can complete in-depth tests on transformers, coils, and more. This model has a 5-digit VFD display, a Hi-LO resistance limit comparator, and high-compliance voltage capabilities. The Valhalla 4300C has a measurement range of 2 mΩ to 30 kΩ.

Model	4300C
Conversion Rate	45 readings per second
Measurement Range	2 mΩ to 30 kΩ
Operating Temperature Range	0°C to 50°C (32°F to 122°F)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Humidity	80% RH max at 40°C
Terminal Configuration	4-wire Kelvin
Display	5-digit VFD
Dimensions (W x H x D)	7 x 4 x 11.5 in (43 x 10 x 29.5 cm)
Weight	25 lb. (9 kg)
