Astro-Med Dash 32HF
Request Quote Print Page
Specifications

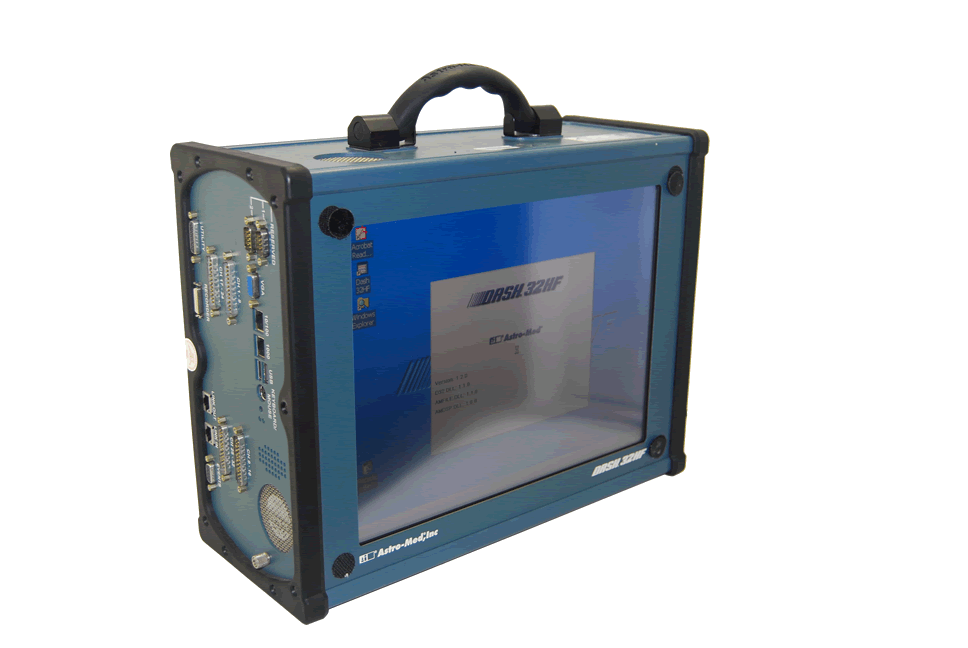

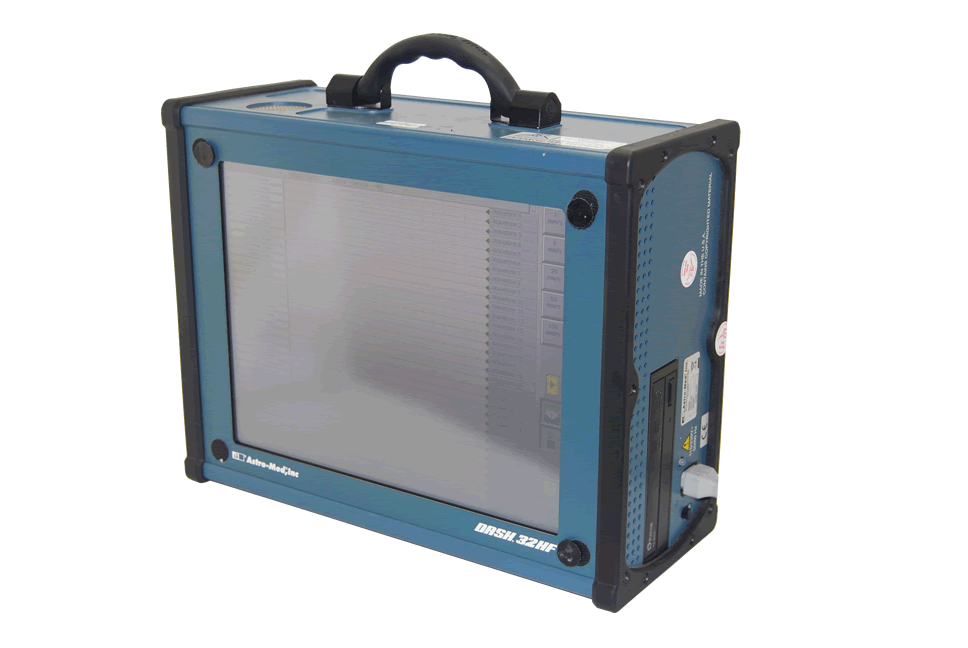

The Astro-Med Dash-32HF High Frequency Data Recorder is a portable data acquisition recorder engineered specifically for capturing multiple channels of high frequency data and transient signals. It provides 32 analog inputs (±50 VDC [35 VRMS]) with sample rates up to 500 KHz and a bandwidth of 100 KHz per channel! The Dash-32HF is the ideal system to give you an accurate record of your high speed data along with all of the channels you need in one compact package.



Features:

  • 32 analog and 8 TTL event inputs
  • Differential Input Connector:
    • 25-pin D-sub male connectors (4 per unit, 8 Channels per connector)
    • Includes 25-pin D-Sub Female to BNC Female break-out cables
  • 500 kHz sample rate per channel directly to hard drive
  • 100 kHz bandwidth per channel
  • Dedicated 250 GByte hard drive for capturing data
  • GBit Ethernet, USB 2.0 and DVD for exporting data to your PC
  • Compact, portable design
  • Link ports for synchronizing data capture between systems
  • Large 15" Touch-Screen Display
