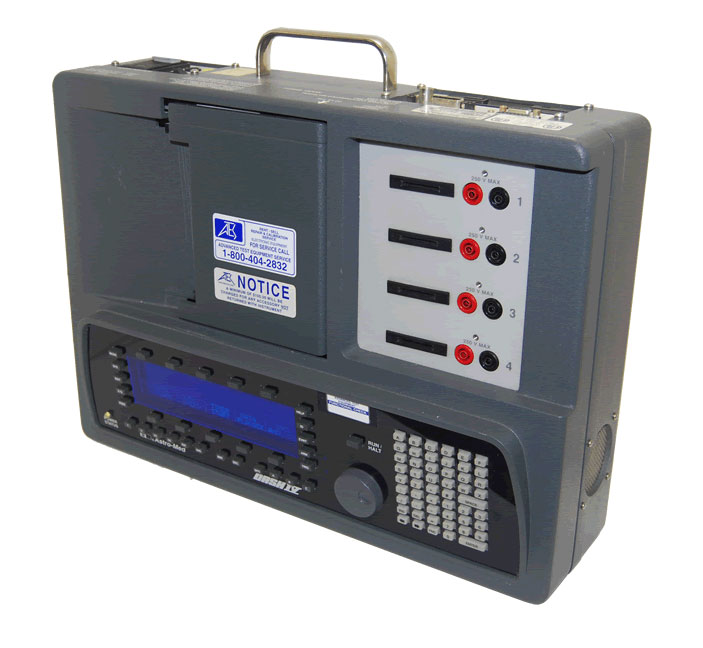

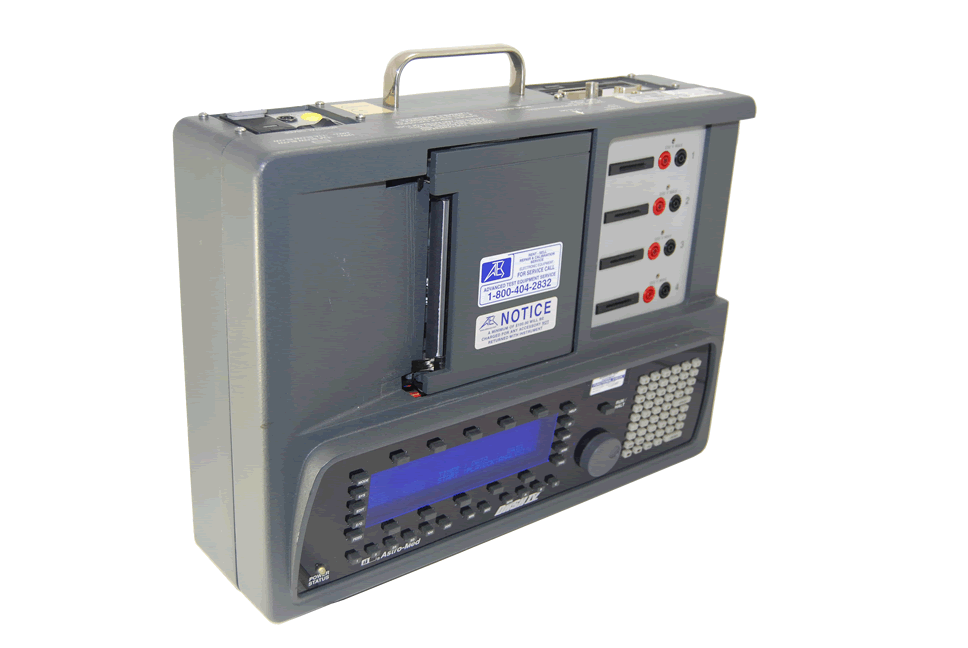

Astro-Med Dash IV 4 Channel Field/Lab Recorder

Astro-Med Dash IV 4 Channel Field/Lab Recorder
Enlarge Image
Astro-Med Dash IV 4 Channel Field/Lab Recorder Astro-Med Dash IV 4 Channel Field/Lab Recorder Astro-Med Dash IV 4 Channel Field/Lab Recorder
Astro-Med Dash IV
Request Quote Print Page

Four channels on separate, custom or overlapped grids

  • 300 dot per inch printhead resolution for superb quality traces
  • Full width, real-time waveform monitor
  • Bandwidth: DC to 20 kHz, Real Time and Capture Modes
  • RMS and Peak to Peak recording modes
  • Operates from AC, 12 VDC, or optional battery pack
  • Built-in signal conditioners allow inputs up to 250 VDC or RMS
  • Full Annotation entry from front panel alphanumeric keypad
  • Paper Speeds of up to 200 mm per second
  • Weight: 26 lbs




Interchangeable Personality Modules (PM) for the Dash IV

  • Model PM-02D General Purpose
  • Model PM-03 High Voltage/Isolation
  • Model PM-04 4 to 20 mA Converter
  • Model PM-06 DC Bridge
  • Model PM-08 High Gain
  • Model PM-10J&E Thermocouple
  • Model PM-10K Type K Thermocouple
  • Model PM-10T Type T Thermocouple
  • Model PM-12 Frequency to Voltage
  • Model PM-13 Log to Linear
