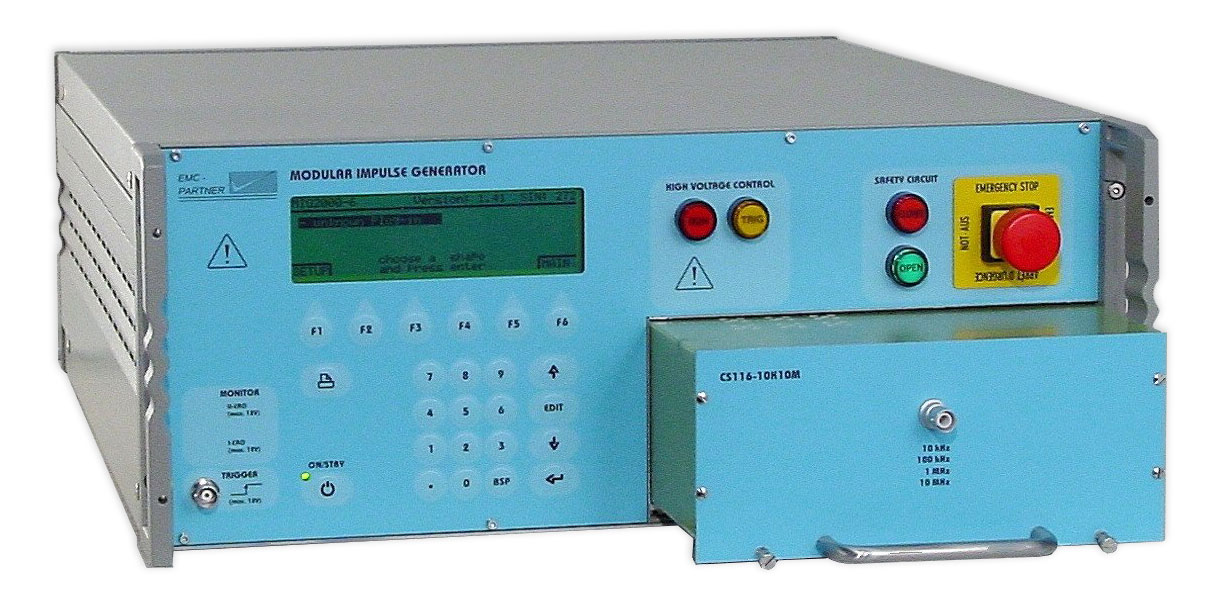

EMC Partner CS116-10K10M Plug-in Module for MIG2000-6

Rent EMC Partner CS116-10K10M Plug-in Module for MIG2000-6
Enlarge Image
Request Quote Print Page
Brochure
The EMC Partner CS116-10K10M Plug-in Module for MIG2000-6 according to MIL-STD-461 CS116 is used to replicate damped sinusoidal transients which are used to simulate oscillations arising from excitation of the platform wiring due to incidence of lightning, EMP or platform switching. Typical frequencies are in the range from 10 kHz to 10 MHz.

Specifications:

  • Current range into 100ohm: 0.02A up to 0.2A
  • Frequency rang : 10 kHz to 10 MHz
  • Damping: 4th peak 40 to 50%
  • Repetition rate: 2Hz (max)
