Keysight 8560A Portable Spectrum Analyzer

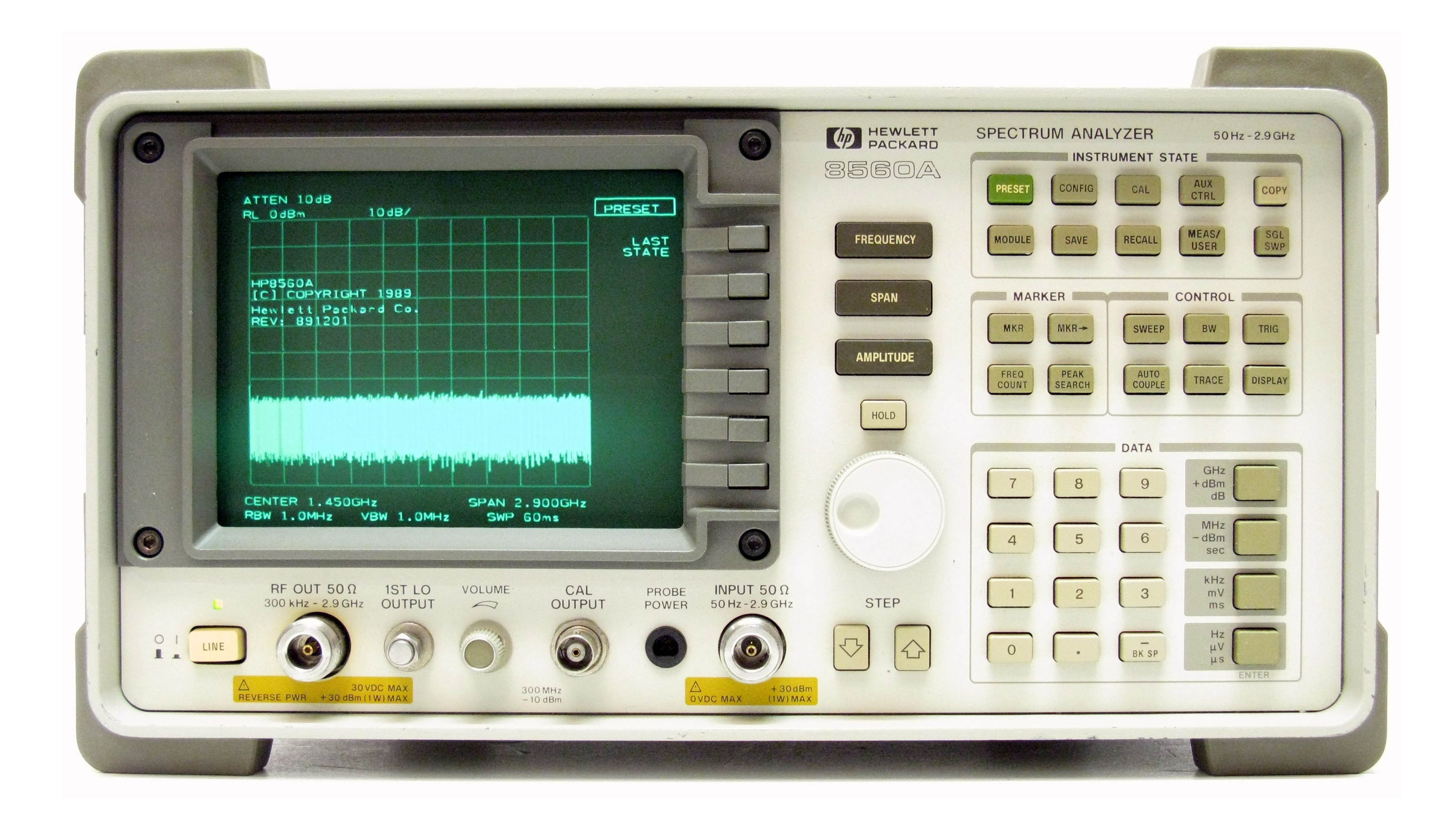

HP/Agilent 8560A Portable Spectrum Analyzer, 50 Hz - 2.9 GHz
Enlarge Image
Keysight 8560A
Request Quote Print Page
Manual Datasheet

Features:

  • Synthesized tuning
  • Frequency counter
  • Digital bandwidths
  • AM/FM demodulator
  • MIL-T-28800C rugged
  • Optional precision frequency reference, tracking generator, mass memory, more



Specifications:

  • Frequency Range: 50 Hz to 2.9 GHz
  • Counter Resolution: 1 Hz - 1MHz (selectable)
  • Frequency Span Range: 0 Hz, 100 Hz to 2.9 GHz over the 10-division CRT horizontal axis, variable in approximately 1% increments, or in a 1, 2, 5 sequence
  • Resolution Bandwidth (-3 dB) Range: 10 Hz to 1 MHz (selectable in a 1, 3, 10 sequence and 2 MHz
  • Video Bandwidth Range: 1 Hz to 3 MHz in a 1, 3, 10 sequence
  • Amplitude Range: +30 dBm (1 W)
  • Reference Level Range: Log,  -120 dBm to +30 dBm in 0.1 dB steps
  • Displayed Average Noise Level:
    50 Hz <-60 dBm
    100 Hz <-60 dBm
    1 kHz <-85 dBm
    10 kHz <-103 dBm
    100 kHz <-110 dBm
    1 MHz to 2.9 GHz <-130 dBm
  • Amplitude Accuracy
    Frequency Response: ±1.0 dB (dc-coupled)
  • Demodulation
    Modulation Type: AM and FM
