Pacific Power Source

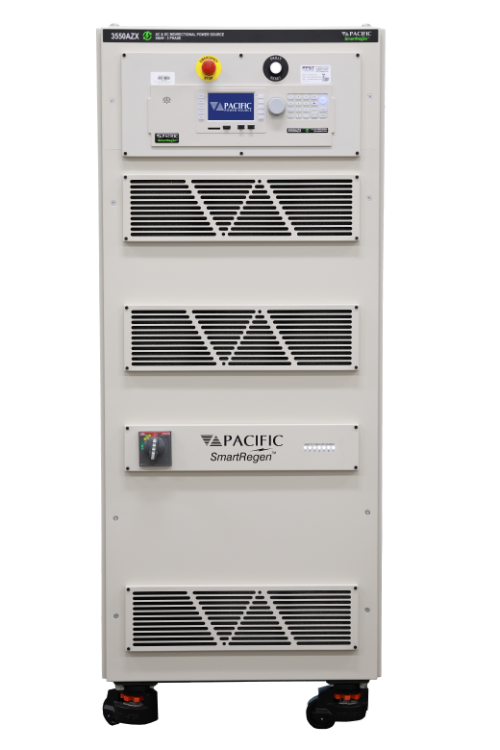

Pacific Power 3500 AZX Regenerative AC and DC Power Source | 50 kVA, 50 kW, 3P

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery
Pacific Power 3500 AZX Regenerative AC and DC Power Source | 50 kVA, 50 kW, 3P Larger
Pacific Power 3500 AZX Regenerative AC and DC Power Source | 50 kVA, 50 kW, 3P
Categories
  • AC Power Supplies
    AC Power Supplies
  • DC Power Supply
    DC Power Supply
  • Grid Simulators
    Grid Simulators
Documents
  • Datasheet
  • Print
  • Email
The Pacific Power 3500 AZX Regenerative AC and DC Power Source allows technicians to efficiently test solar inverters, energy storage systems, and more. The device has up to three output phase modes. With a full color, touch LCD display, and table and graph format display modes the 3500 AZX is user-friendly and reliable. The Pacific Power 3500 AZX Regenerative AC and DC Power Source has a rated power of 50 kVA and can provide test support key equipment like grid-connected power generators, electric vehicle chargers, and regulatory compliance test systems.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Full power source and sink capability
  • Full 100% of current and power rating in both source and sink mode

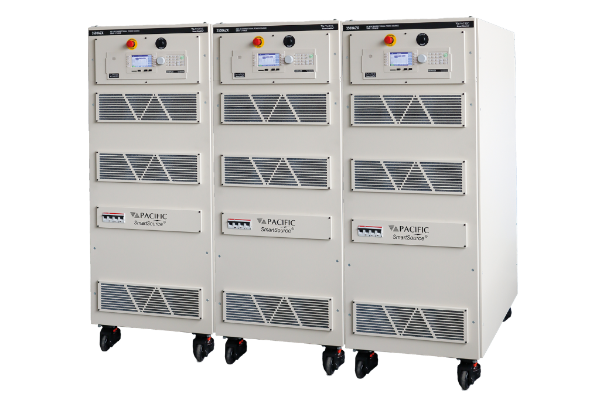

  • Parallel configurations for higher power
  • Three-phase, Split-phase, and Single-phase output modes
  • Dual constant power mode voltage ranges
  • Phase angle programming
  • Precise output voltage and load regulation
  • Output transient programming
  • Programmable output impedance
  • Standard USB, LAN (LXI), RS232, & GPIB interfaces
Specifications
Dimensions
(H x W x L)
59.8” x 24.0" x 31.9"
1520 x 610 x 810 mm
Weight 1140 lb.
517 Kg
Output phase modes 3, 2 & 1
Rated Power AC / DC mode 50 kVA
50 kW
High Voltage Range (Vac L-N / Vdc) 0 ~ 440 Vac / 0 ~ ±650 Vdc
Low Voltage Range  0 ~ 225 Vac / 0 ~ ±335 Vdc
Max. Current High:
75 / 75 / 225 Arms
50 / 50 / 150 Adc
Low:
130 / 130 / 390 Arms
100 / 100 / 300 Adc
No. of cabinets 1
Display Full color, touch LCD display
4.3" diagonal
480 x 272 pixels
Display modes Table format
Graph format
Applications
Options
Accessories
Standards
Media

RELATED PRODUCTS

Keysight RP7983A Regenerative DC Power Source | 2000 V, 30 kW
Keysight RP7983A Regenerative DC Power Source | 2000 V, 30 kW
NH Research 9410 Regenerative Grid Simulator | 30 - 100 Hz, 3P
NH Research 9410 Regenerative Grid Simulator | 12 kW - 36 kW, 3P
Regenerative Grid Simulator 50kW up to 1.2MW – Model 9510
NH Research 9510 Regenerative Grid Simulator | 50kW to 1.2MW
Pacific Power 3150AFX AC and DC Programmable Power Source
Pacific Power 3150AFX AC & DC Programmable Power Source
California Instruments Asterion AST2253 AC/DC Power Source | 2250 VA
California Instruments Asterion AST2253 AC/DC Power Source | 2250 VA
Chroma 62180D-100 Bidirectional DC Power Supply | 100 V, 18 kW
Chroma 62180D-100 Bidirectional DC Power Supply | 100 V, 18 kW
Preen PAS Series Grid Simulators | 45 - 2000 kVA, 3P
Preen PAS Series Grid Simulators | 45 - 2000 kVA, 3P
Chroma 61860 Regenerative Grid Simulator 60 kVA
Chroma 61860 Regenerative Grid Simulator | 60 kVA
Chroma 62180D-600 Bidirectional DC Power Supply | 600 V, 18 kW
Chroma 62180D-600 Bidirectional DC Power Supply | 600 V, 18 kW
California Instruments MX45 AC Power Source | 45 kVA, 3P
California Instruments MX45 AC Power Source | 45 kVA, 3P
Chroma 62180D-1800
Chroma 62180D-1800 Bidirectional DC Power Supply
Pacific Power Supply
Pacific Power 360AMX AC Power Supply
TDK Lambda GENESYS+15KW Programmable DC Power Supply
TDK Lambda GENESYS+15KW Programmable DC Power Supply
California Instruments Asterion AST2253 AC/DC Power Source | 2250 VA
California Instruments Asterion AST2253 AC/DC Power Source | 2250 VA
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
NH Research 9300 High-Voltage Battery Test System | 1200 V, 100 kW - 2.4 MW
NH Research 9300 High-Voltage Battery Test System | 1200 V, 100 kW – 2.4 MW
Preen AFV Series Programmable AC Power Source
Preen AFV Series Programmable AC Power Sources
California Instruments TA0045A1 AC Power Supply
California Instruments TA0045A1 AC Power Supply
Sorensen SG Series DC Power Supply
Sorensen SG Series DC Power Supply
Magna-Power Electronics MTAIV600-240
Magna-Power Electronics MTAIV600-240 DC Power Supply
Preen PWF-L 33045 Programmable AC Power Source
Preen PWF-L 33045 Programmable AC Power Source
Chroma 61612 AC/DC Power Source, 36kVA
Chroma 61612 Programmable AC/DC Power Source
Regatron TopCon Quadro TC.P.32.1000.480
Regatron TopCon Quadro TC.P.32.1000.480 DC Power Supply
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
Chroma 61611 AC/DC Power Source
Chroma 61611 AC/DC Power Source
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
