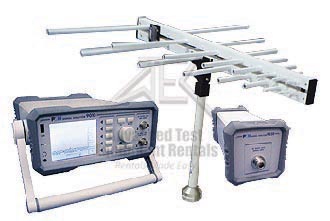

The PMM 9010 Series Digital EMC / EMI Receivers are powerful and fully CISPR 16-1-1 compliant. These receivers measure conducted and radiated interferences from 9 kHz up to 18 GHz. All measurements performed by the PMM 9010 series of instruments are according to the most accepted standards including IEC, CISPR, EN (EuroNorm), FCC, and VDE. The PMM 9010 series's built-in tracking generator is also suitable for designing, characterizing and testing RF filters, transducers and other components.
The PMM 9010 Digital EMC / EMI series has been designed adopting an innovative philosophy made possible only in the recent years by the availability of superior technology components. The PMM 9010 series is fully digital with the exception of the input preselector and attenuator – and, of course, the output stage of the internal reference tracking generator. Therefore, it combines into a pure EMI receiver with the precision and accuracy of a numeric approach, as well as the flexibility and user friendly approach typical of a modern instrument.
The PMM 9010 series consists of the PMM 9010, PMM 9010F, PMM 9030, PMM 9060, and PMM 9180 EMC/EMI receivers.
Features
- The Marker is a very powerful feature, providing an easy-to-read frequency/amplitude value through a simple knob rotation in the window span
- The Pre-Loaded Limits for Sweep Mode are stored in a nonvolatile memory, providing for CISPR Compliance
- The Simultaneous Detectors, QP-PK-AVGRMS, for time-coherent measurements, provide parallel indications at every frequency value in the range
- The Hold Time in Manual mode is the integration time of the RMS - AVG detectors; it represents the reset time of the PK - QP detectors
- The Scalar Network Analyzer is another powerful function useful for designers, providing an easy-to-use scalar network analyzer for characterizing components, filters and far beyond
- The Controls - The receiver can be operated by the front knob and soft keys through real user-friendly menus, as a stand alone unit, or remotely by a PC connected through USB/RS-232 Serial Interface (Bluetooth optionally)
- The Internal Signal Generator is not a simple tracking generator, but rather a very precise and flexible generator, tracking with the span or independently adjustable at any frequency in the range 10 Hz - 50 MHz
Specifications
| |
9010 |
9010F |
9030 |
9060 |
9180 |
| Frequency Range (Standard) |
10 kHz-30 MHz |
9 kHz-30 MHz |
30 MHz-3 GHz |
30 Mhz-6 GHz |
6-18 GHz |
| Frequency Range (Full Compliance; CISPR 16-1-1) |
2-9 kHz |
10 Hz - 30 kHz |
120 kHz |
120 kHz |
6 – 18 GHz |
| Internal Tracking |
10 Hz -30 MHz |
10 Hz -30 MHz |
N/A |
N/A |
N/A |
| Fiber Optic Cable |
N/A |
N/A |
20 m |
20 m |
20 m |
| Battery Pack |
BP02 |
BP02 |
BP02 |
BP02 |
BP02 |
