Solar 6338-57-PJ-50-N Line Impedance Stabilization Network

Solar 6338-57-PJ-50-N Line Impedance Stabilization Network
Enlarge Image

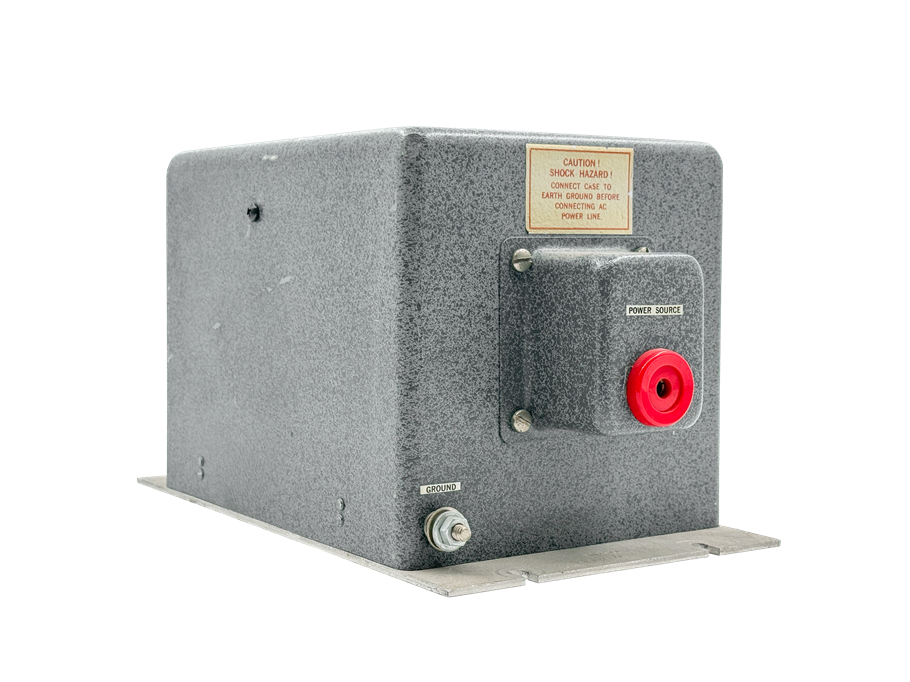

Solar Electronics 6338-57-PJ-50-N
Request Quote Print Page
Datasheet

Application

Measuring conducted radio interference voltages from active power lines to ground.


Description

Uses a series inductor between the test sample and the power source to provide the impedance-versus-frequency characteristic. A coaxial connector with d.c. isolation is provided for connection to the associated frequency selective EMI meter.


Specifications

  • R.F. connector style: N
  • Terminals: Plug and Jack
  • Amps: 50
  • µH: 57
  • Frequency: 14 KHz - 4 MHz
  • Line/Ground Voltage:
    • 50-60 Hz: 270
    • 400 Hz: 130
