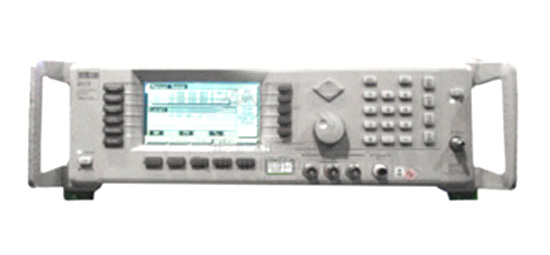

Anritsu 68147B Synthesized Signal Generator 10 MHz to 20GHz

Anritsu 68147B Synthesized Signal Generator 10 MHz to 20GHz
Enlarge Image
Anritsu 68147B
Request Quote Print Page
68147B Datasheet Supplemental Document
10 MHz - 20 GHz, Synthesized Sweep Generator

Anritsu 68147B Features
  • User level flatness correction
  • Self-test
  • Secure mode
  • Reset
  • Master/slave operation
  • 360B SS Mode
  • Output Accuracy : 2dB
Anritsu 68147B Specs
Minimum Frequency 0.01 GHz
Maximum Frequency 20 GHz
Frequency Resolution 1 kHz
Frequency Switching Time 40 ms
Time base stability 0.00000002 /day
Minimum Output Power -15 dBm
Maximum Output Power 13 dBm
Power Resolution 0.01 dB
Output Accuracy 2 dB
Output Level Switching Time 20 ms
Output Impedance 50 Ohm
Minimum Single-Side-Band Noise -96 dBc/Hz
Maximum Single-Side-Band Noise -66 dBc/Hz
Harmonics (noise) -40 dBc
Non-harmonics (noise) -40 dBc
Modulation AM,FM,Pulse
External Modulation Inputs(Types) es
Maximum points of step sweep 10000 pt/sec
