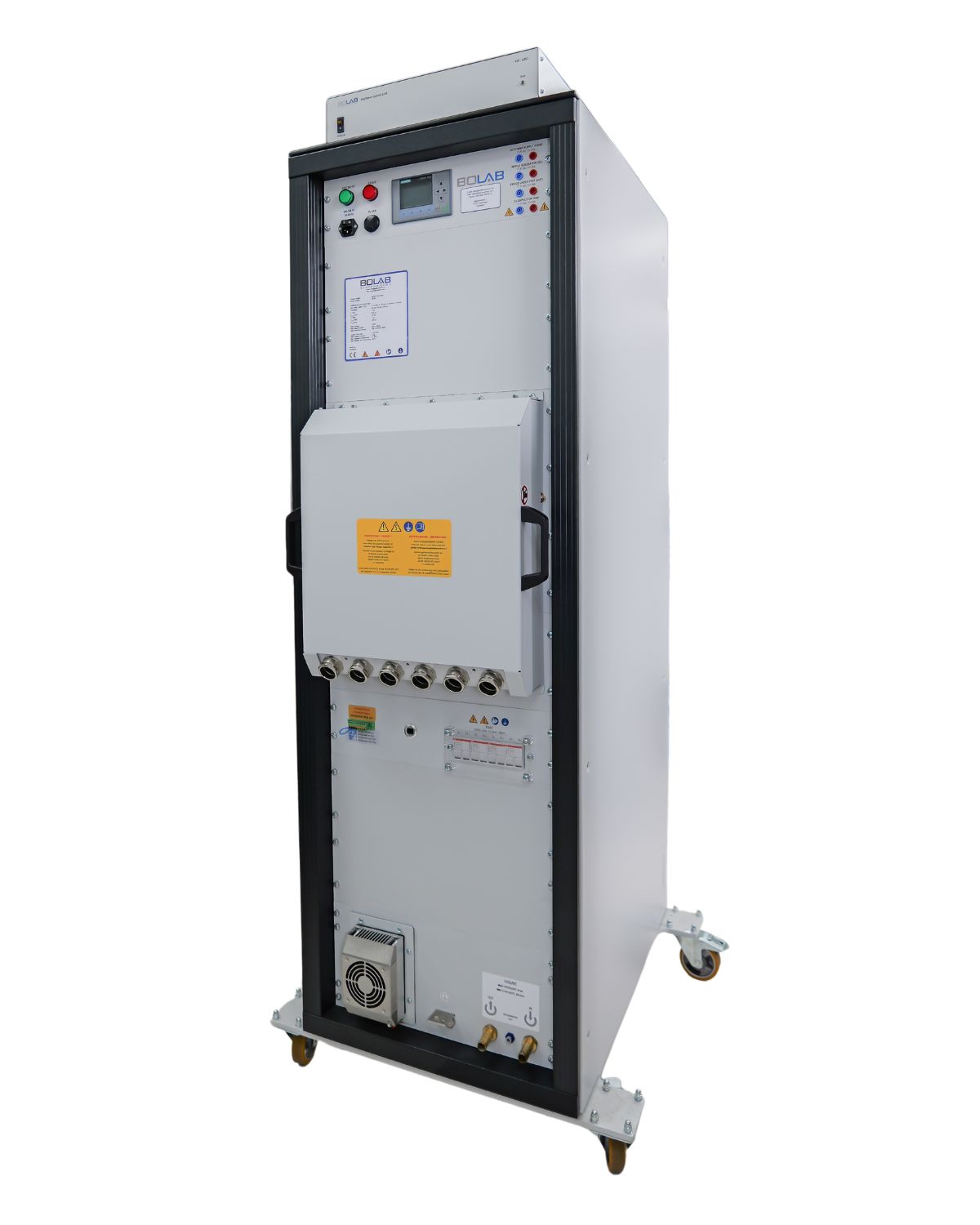

BOLAB AN-V-X-7IN1-300A

Artificial Network 150 kHz / 1000V / 300 A

The BOLAB AN-V-X-7IN1-300A is a high voltage, and high current system that uses an analog system covering a bandwith up to 150 kHz, with a max voltage of 1000 V, and 300 A. This artificial network is perfect to test all voltage class B components found in hybrid and electric vehicles. This unit is perfect for meeting standards such as ISO 21498, LV 123, IEC 61851-23 and internalnorm requirements. Additional standards it meets include MBN 11123, GS 95023, VW 80303 or impedances taken from vehicular measurements.

Product Info Related Products

Model	AN-V-X-7IN1-300A
Series	AN-Series
Current	300 A
Maximum Voltage	1000 V
Maximum Voltage Ripple	80 Vpk
Typical Isolation Resistance	200 MΩ
Protection Rating	IP20

150 kHz
300 A
1000 V
In accordance with LV123, ISO 21498 and IEC 61851-23
Liquid cooled for stabile resistance temperature and constant ohmic value
True continues current loading without derating, ideal for in-the-loop testing during the development stage of HV components
2x tighter tolerance than required in ISO 21498
Modular and upgradable system that grows with your testing needs
Self-monitoring, safe and reliable system
