Keysight 8665B High Performance Signal Generator, 100 kHz - 6 GHz

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent HP / Agilent 8665B 100 kHz - 6 GHz High Performance Synthesized Signal Generator
Enlarge Image

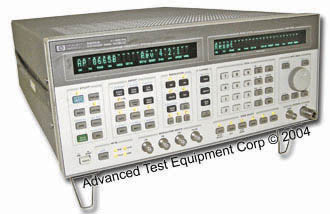

Keysight 8665B
Request Quote Print Page
Manual 8665B Datasheet
The Keysight 8665B signal generator is suited for basic receiver testing up to 6 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 20 MHz are suitable for many applications such as high-speed digital communications. The internal modulation source generates sine, square, triangle or sawtooth waveforms.

Radar testing can be done by adding Option 008 (pulse modulation) .
For applications demanding the lowest RF leakage, Option 010 provides increased RF shielding.
Keysight 8665B Features
  • <-140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004

  • <-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers

  • AM, FM, and optional pulse modulation

  • 0.01 Hz frequency resolution

  • On-site repair and calibration
