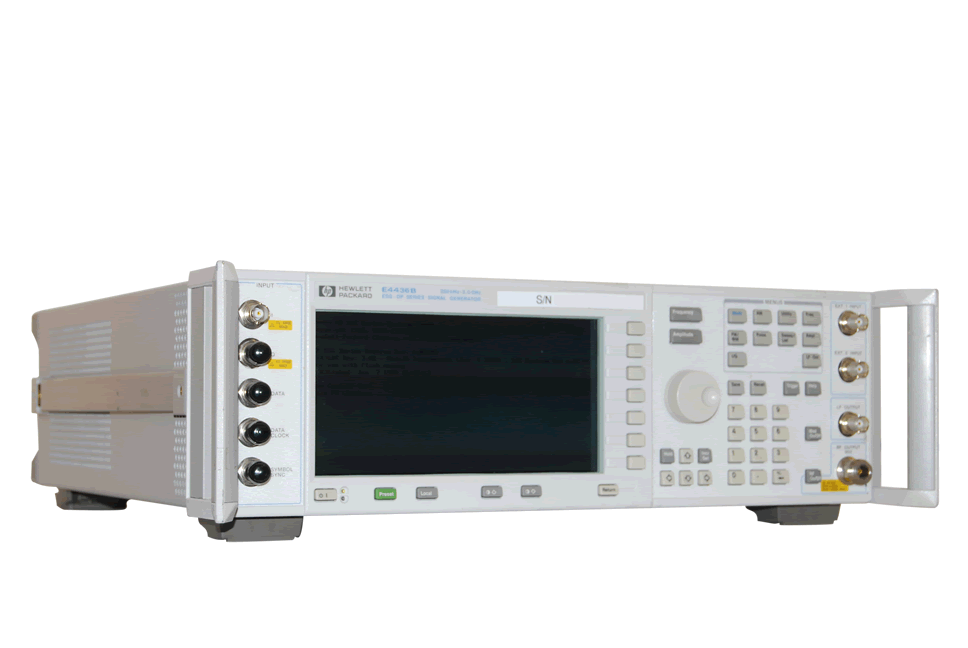

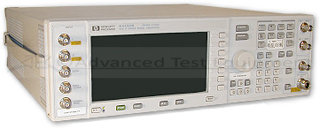

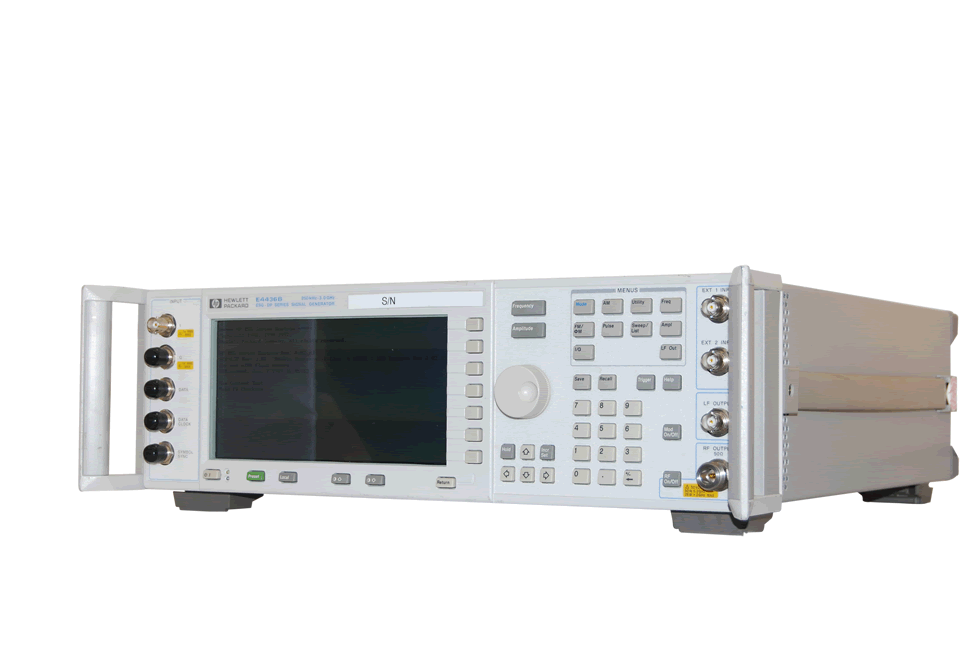

Agilent E4436B UN8 ESG-DP Digital RF Signal Generator, 3GHz

Rent Agilent E4436B UN8 ESG-DP Digital RF Signal Generator, 3GHz
Enlarge Image
Rent Agilent E4436B UN8 ESG-DP Digital RF Signal Generator, 3GHz Rent Agilent E4436B UN8 ESG-DP Digital RF Signal Generator, 3GHz Rent Agilent E4436B UN8 ESG-DP Digital RF Signal Generator, 3GHz
Request Quote Print Page
Datasheet

The Agilent E4436B RF signal generator offers excellent spectral purity and digital modulation capabilities for general-purpose research and development, manufacturing or troubleshooting applications. Providing a comprehensive feature set, it generates standard and custom digital modulation formats, filtering and burst shapes, as well as versatile analog modulation, with superior quality, reliability and worldwide support.



Specifications:

  • Frequency Range: 250 kHz to 3 GHz
  • RF Modulation Bandwidth: up to 35 MHz
  • Optional dual arbitrary waveform generator and/or real-time I/Q baseband generator
  • Sample Rate: 40 MHz
  • I/Q resolution: 14-bit
  • Waveform Playback Memory: 1M sample (4 MB)
  • Waveform Storage Memory: 1M sample (4 MB)
  • Custom digital modulation (>15 variations of FSK, MSK, PSK, and QAM), AM, FM, phase modulation, pulse modulation, and step/list sweep (frequency and power)
  • GPIB and RS-232 connectivity
