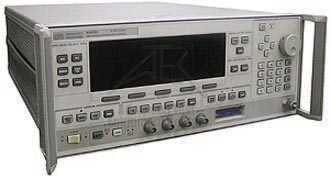

HP Agilent 83620A Synthesized Sweeper, 10 MHz to 20 GHz

Rent HP Agilent 83620A Synthesized Sweeper, 10 MHz to 20 GHz
Enlarge Image
Request Quote Print Page
Manual Specifications

The HP Agilent 83620A synthesized sweeper is used for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83620A to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 20 GHz.



Features:

  • Scan modulation to simulate antenna scan patterns
  • Accurate fixed and swept frequency offset for two-tone measurement
  • User flatness correction for leveling at remote points in the test system
  • General purpose source for use in component test, receiver test and for frequency conversion
  • Sweep modes: Step, List, Ramp
  • Maximum power (<20 GHz): +13 dBm
  • Power sweep range: -20 dBm to maximum power
  • Phase noise (20 GHz at 10 KHz): -70 dBc
  • Max FM deviation (locked): +/- 8 MHz
