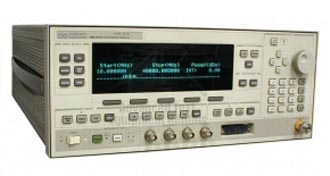

Keysight 83630B Synthesized Signal Generator, 0.01 - 26.5 GHz

HP/Agilent 83630B Synthesized Swept-Signal Generator
Enlarge Image
Keysight 83630B
Request Quote Print Page
Manual Datasheet Specifications

The Keysight 83630B synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the 83630B to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 GHz to 26.5 GHz.



Features:

  • +13 dBm calibrated output power
  • -50 dBc harmonics <26.5 GHz typical
  • SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
  • Complete analog sweeper
  • 1 Hz frequency resolution (Option 008)
  • Pulse, amplitude and frequency modulation (8360B Series only)
  • -110 dBm output power with step attenuator (Option 001)
