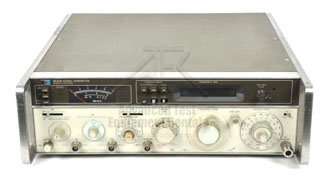

Keysight 8640B Signal Generator

HP Agilent 8640B Signal Generator
Enlarge Image
Keysight 8640B
Request Quote Print Page
Manual
0.5 MHz - 512 MHz Mechanically Tuned VHF Signal Generator

Keysight 8640B Features
  • Low SSB phase noise
  • Internal phase lock/synchronizer, digital frequency readout, external count capability to 550 MHz
  • Avionics version (Option 004)
  • Calibrated, metered AM, FM and pulse modulation
Keysight 8640B Specs
  • Frequency Range: 500 kHz to 512 MHz in 10 octaves
  • Fine Tuning Unlocked: >1000 ppm total range
  • Accuracy: 6.5 digit LED display with X10 and X100 expand
  • Stability: <10 ppm / 10 minutes
  • Output Range:
    • 002: +18 to -145 dBm
    • 003: +18.5 to -145 dBm
    • 004: +15 to -142 dBm
  • Level Accuracy: ± 1.5 dB to ± 4.5 dB
    • opt. 004: ±2 dB to ±3 dB
  • Modulation: internal and external AM/FM and Pulse
  • AM Bandwidth: 3 dB
  • External Input Impedance: 600 W
Keysight 8640B Accessories
Options:
  • 001: 20 - 600 kHz internal audio oscillator
  • 002: Internal doubler 512 to 970 MHz
  • 003: Reverse power protection
  • 004: Avionics version
