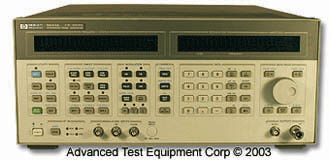

Keysight 8643A High Performance Signal Generator

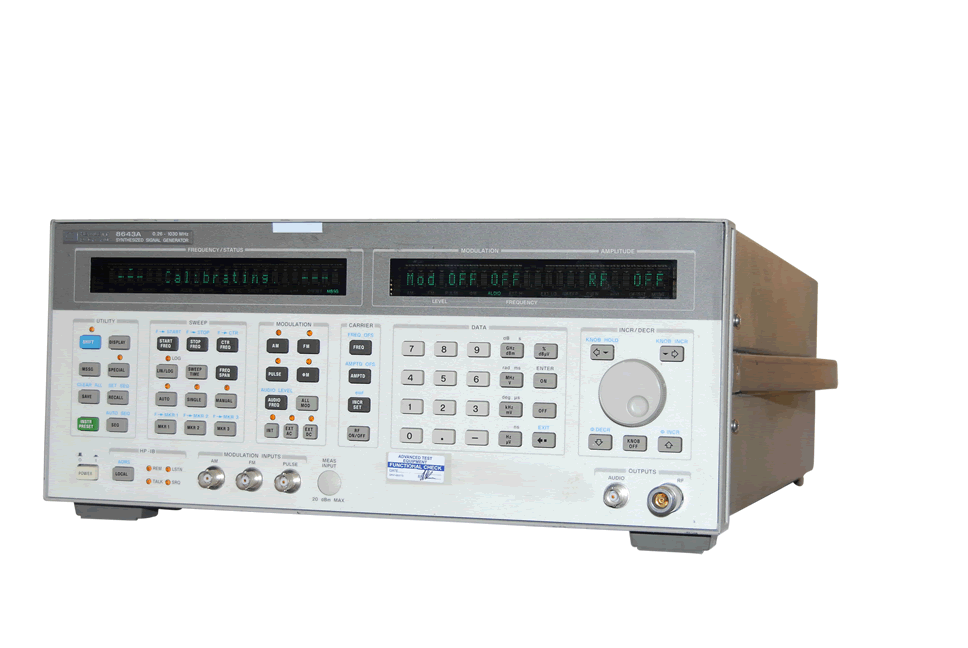

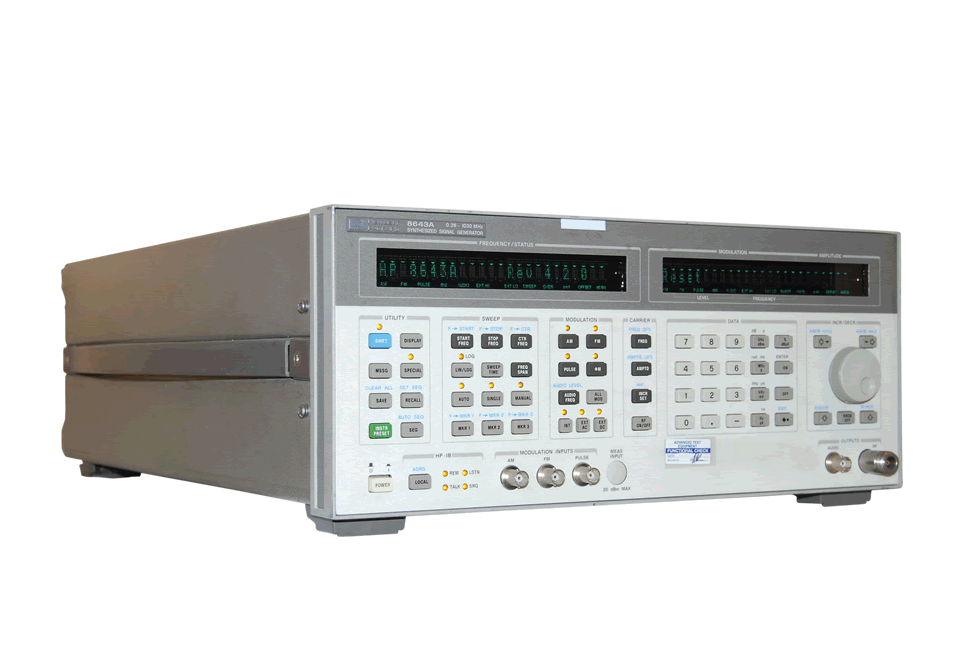

HP/Agilent 8643A High-Performance Signal Generator
Enlarge Image
HP/Agilent 8643A High-Performance Signal Generator HP/Agilent 8643A High-Performance Signal Generator HP/Agilent 8643A High-Performance Signal Generator
Keysight 8643A
Request Quote Print Page
Datasheet

High Performance RF Signal Generator

  • Frequency Range: 0.252 to 1030 MHz
  • Resolution: 0.01 Hz
  • Switching Speed: <90 ms
  • Output Range: +13 to -137 dBm
  • Resolution: 0.01 dB
  • Absolute Accuracy: ± 1 dB
  • Reverse Power Protection: 50 W
  • Pulse Modulation:
    • On/Off Ratio: >35 dB; >80 dB, >1030 MHz
    • Rise/Fall Time, 10 to 90%: <100 ns
    • Repetition Rate: DC to 1 MHz
  • Output Level at 600 W: 2 V pk
  • Output Resolution: 2 mV pk
  • Digital Sweep: 0.5 to 1000 s sweeps



Features:

  • Frequency ranges of 1 GHz or 2 GHz
  • Lowest overall noise and spurious
  • AM, FM, and pulse modulation
  • Internal modulation fro complex waveforms



Ask your sales representative for information on the following:
options:
  • 001: High Stability Timebase
  • Option HO2:Better Performance specs 252KHz to 1030MHz, output +13 to -137dBm
  • 004: Low-Noise Option
  • 005: Electronic Attenuator
  • 008: Pulse Modulation
  • 009: Specified VOR/ILS
  • 011: 2 GHz Internal Frequency Counter
