HP Agilent 8648A Signal Generator, 100 kHz - 1 GHz

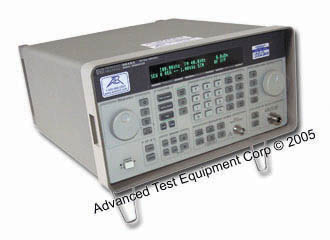

 HP/Agilent 8648A Synthesized Signal Generator
Enlarge Image
Request Quote Print Page
Manual Datasheet Specifications

 Specifications:


Frequency 100 kHz to 1000 MHz
Resolution 0.001 Hz with a 10 Hz Display
Switching Speed (Typical) <1001MHz; <75ms; ≥1001MHz; <100ms
Accuracy (after one hour warm-up) Typically +3 x 106 x carrier frequency in Hz, +0.15 x 106 x carrier frequency in Hz for option 1E5 (typically +0.072 x 106 x fc)
Aging Standard Timebase
< +2 ppm/yr
Option 1E5
< +0.1 ppm/yr
< +0.005ppm/day
Temperature Standard Timebase
< +1 ppm
Option 1E5
<+0.001ppm
Output 10 MHz, typically >0.5Vrms into 50 ohms
