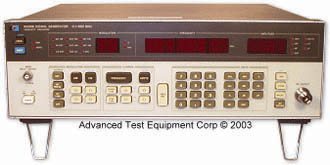

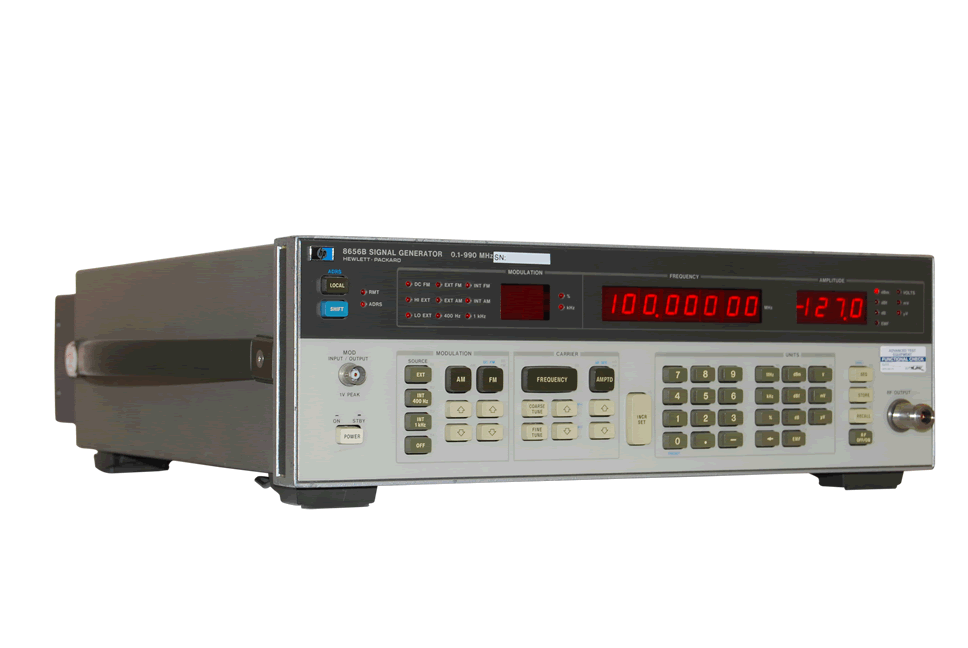

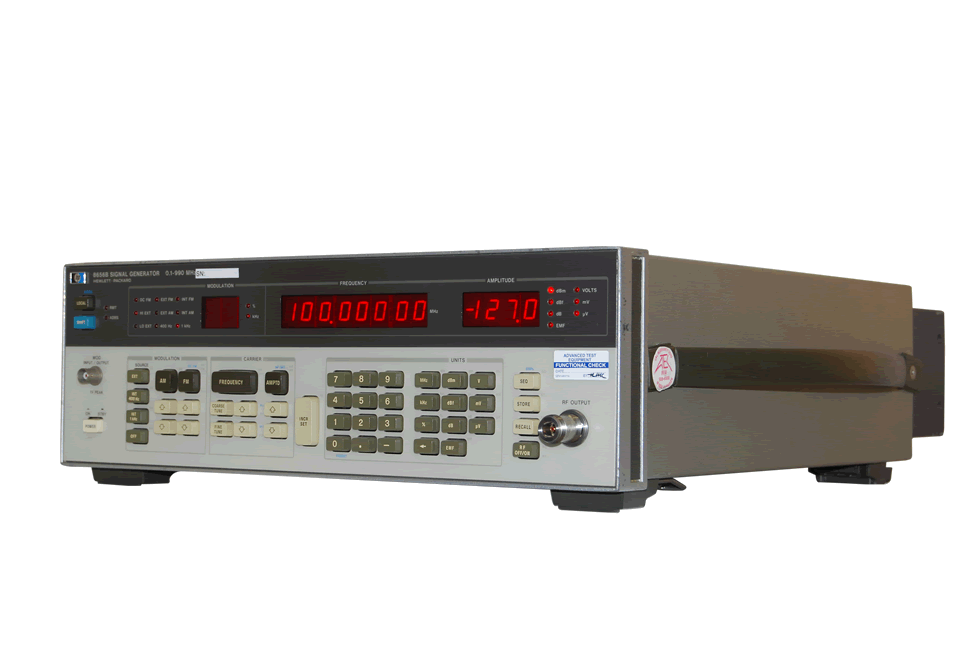

Keysight 8656B Synthesized Signal Generator, 990 MHz

HP Agilent 8656B Synthesized Signal Generator, 990 MHz
Enlarge Image
HP Agilent 8656B Synthesized Signal Generator, 990 MHz HP Agilent 8656B Synthesized Signal Generator, 990 MHz
Keysight 8656B
Request Quote Print Page
Manual
100 kHz - 990 MHz Synthesized Signal Generator

Keysight 8656B Features
  • Frequency Range: 100 kHz to 990 MHz
  • Resolution: 0.1 dB
  • Level Accuracy: ±1 dB
  • Frequency Switching Speed: <35 ms
  • Output Levels: +13 to -127 dBm
  • Modulation: simultaneous and mixed
  • AM and FM capabilities
  • Amplitude offset and phase adjust capabilities
