Keysight 8684B Microwave Signal Generator 5.4 - 12.5 GHz

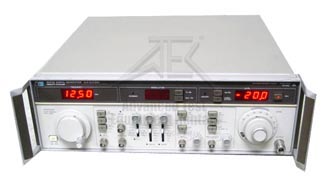

HP / Agilent 8684B Solid-State Microwave Signal Generator
Enlarge Image
Keysight 8684B
Request Quote Print Page
Specifications
5.4 GHz - 12.5 GHz, AM, FM, PM, -130dB to +10dB

Keysight 8684B Specs

Frequency

  • Range: 5.4 - 12.5 GHz
  • Resolution: 10 MHz
  •
  • Spectral Purity: Harmonics: < -25dBc
  • Output Specifications
    • Range (leveled into 50 ohms): +10 to -130 dBm
    • Resolution: 0.1 dB

  • Amplitude Modulation
    • Depth (1 kHz rate): 0 - 70%
    • Rates (3 dB BW at 40% depth): dc to 10 kHz (dc coupled); 50 Hz to 10 kHz (ac coupled)

  • Frequency Modulation
  • Peak deviation: ± 5 MHz
  • Rates (3 dB BW): dc to 10 MHz, 100 Hz to 10 MHz (ac coupled)

Pulse Modulation - Internal Pulse Generator
  • Rate: 10 Hz to 1 MHz
  • Width: 50 ns to 100 ms
