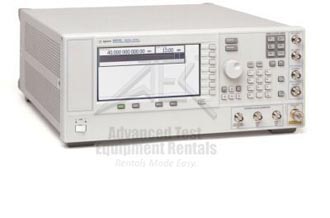

Keysight E8251A PSG-A Performance Signal Generator

Agilent E8251A PSG-A Performance Signal Generator
Enlarge Image
Keysight E8251A
Request Quote Print Page
Manual Datasheet Other1 Other2

Features:

  • Widest frequency range (250 kHz to 20 GHz) with 0.01 Hz frequency resolution - standard
  • Highest power available (+13/+20) at 20 GHz with excellent level accuracy (0.7 and 0.9 dB)
  • SSB phase noise less than -110 dBc/Hz at 20 kHz offset at 10 GHz carrier
  • Optional SSB phase noise less than -98 dBc/Hz at 1 kHz offset at 10 GHz carrier
  • Digital Sweep functions (list and step) with capability of calibrating every point at the test port using the user flatness correction
  • Easy frequency extension to 110 GHz with Agilents 83550 Series
  • AM, FM, phase, and pulse modulation
  • Dual internal modulation generators with sine, square, triangle, positive/negative ramp, Gaussian Noise, Uniform Noise, Swept Sine, Dual Sine up to 1MHz rates
  • Internal pulse generator 14 MHz max PRF
