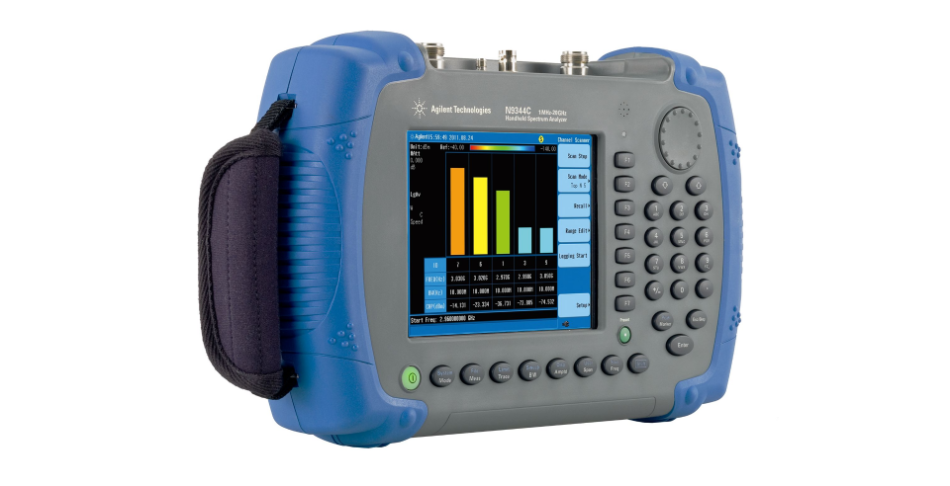

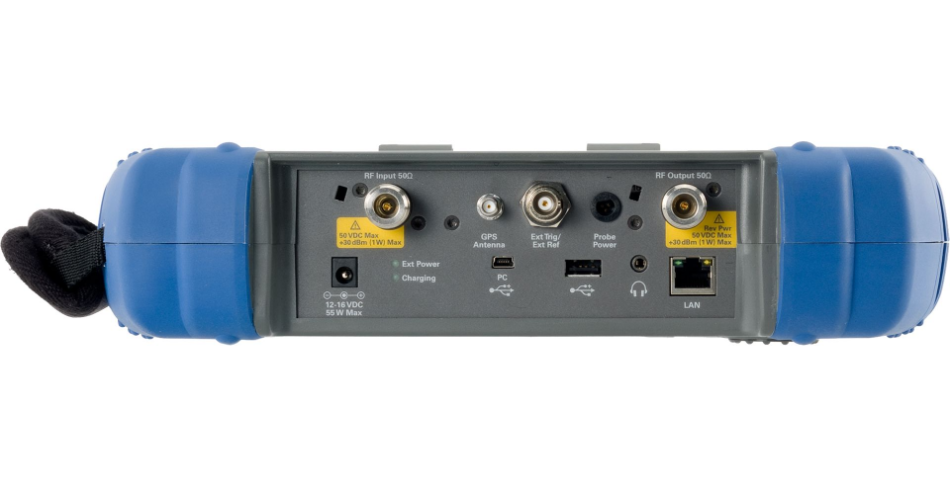

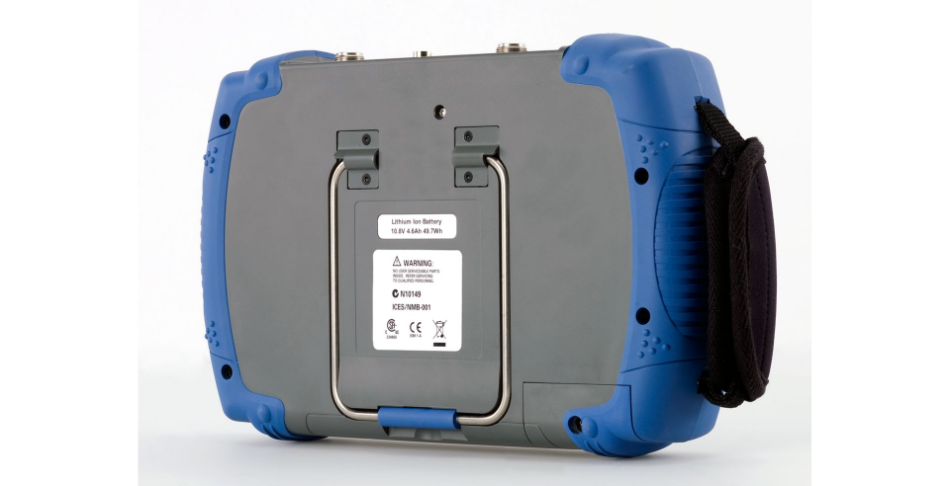

Keysight N9344C Handheld Spectrum Analyzer
Enlarge Image
Keysight N9344C Handheld Spectrum Analyzer Keysight N9344C Handheld Spectrum Analyzer
Keysight N9344C
Request Quote Print Page
N9344C Datasheet Accessory Kit
9 kHz - 20 GHz Handheld Spectrum Analyzer

Keysight N9344C Features
Spectrum analyzer
  • 9 kHz to 20 GHz
  • -144 dBm displayed average noise level (DANL)
  • ±1.3 dB amplitude accuracy
  • < 0.95 s sweep time for 20 GHz full span

Tracking generator (TG)
  • 5 MHz to 7 GHz
  • Output level: -20 to 0 dBm, 1 dB step
  • Built-in GPS receiver and GPS antenna
  • Channel scanner measures up to 20 channels simultaneously
  • Spectrum monitor with spectrogram display, record, and playback
  • High-accuracy power measurement with U2000 Series USB power sensors
  • AM/FM/ASK/FSK modulation analysis and time-gated spectrum analysis
Keysight N9344C Specs
Frequency range 1 MHz to 20 GHz (tunable to 9 kHz)
Internal 10 MHz frequency reference accuracy
Aging rate ± 1 ppm/year
Temperature stability ± 1 ppm
Frequency readout accuracy with marker (start, stop, center, marker)
Marker resolution frequency span)/(sweep points - 1)
Uncertainty ± (frequency indication × frequency reference uncertainty + 1% × span + 20% × resolution bandwidth + marker resolution + 1 Hz)
Marker frequency counter
Resolution 1 Hz
Accuracy ± (marker frequency × frequency reference uncertainty + counter resolution)
Frequency span
Range 0 Hz (zero span), 100 Hz to 20 GHz
Resolution 1 Hz
Accuracy ± (0.22% × span + span/(sweep points - 1))
SSB phase noise
30 kHz
100 kHz
1 MHz
< -86 dBc/Hz, typical -89 dBc/Hz
< -97 dBc/Hz, typical -99 dBc/Hz
< -115 dBc/Hz, typical -119 dBc/Hz
Resolution bandwidth (RBW)
-3 dB bandwidth 10 Hz to 3 MHz
Accuracy ± 5%, RBW = 10 Hz to 1 MHz
± 10%, RBW = 3 MHz
Resolution filter shape factor < 5:1
Video bandwidth (VBW)
-3 dB bandwidth 1 Hz to 3 MHz
Accuracy ± 10%, VBW = 1 Hz to 1 MHz
