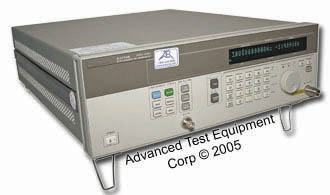

Keysight 83712B Synthesized Swept CW Generator

Discontinued

View Alternatives

This signal source will perform beyond your expectations at a price within your reach. Fundamental oscillators and switched low-pass filters deliver <-55 dBc harmonics, eliminate subharmonics and suppress spurious to <-60 dBc. This signal source provides plenty of output power (typically >+14 dBm), while spectral purity is maintained even at high power levels (typical output power at frequencies below 1 GHz is +20 dBm).

Product Info Related Products

Frequency
Range:	10 MHz to 20 GHz
Resolution:	1 kHz (1 Hz with Option 1E8)
Stability (with high-stability timebase, Option 1E5)	Aging rate: <1.5 x 109/day after 24-hour warm up Temperature effects: <1 x 107 over 0 to 55° C, nominally <1.4 x 109/° C Line voltage effects: <5 x 1010 for 10% change in line voltage
Stability (without high-stability timebase)	Aging rate: <1.0 x 108/day after 72 hours at 25° C ± 10° C Temperature effects: <5 x 106 over 0 to 55° C referenced to 25° C
Frequency switching time	<50 ms to within 1 kHz for any frequency step <35 ms to within 1 kHz for <1 GHz steps not across the 10 GHz band switch point
RF Output
Maximum leveled output power:
Frequency	Standard	with Option 1E1
0.01 to 1 GHz	+13 dBm	+13 dBm
1 to 18 GHz	+11 dBm	+10 dBm
18 to 20 GHz	+10 dBm	+ 8 dBm
Minimum leveled output power:	4 dBm with Option 1E1, 110 dBm
Display resolution:	0.01 dB
Accuracy (4 dBm1 to maximum specified leveled output power2):	10 MHz to 50 MHz, ±1.3 dB 50 MHz to 20 GHz, ±1.0 dB
Accuracy (over all power levels2):	10 MHz to 50 MHz, ±2.3 dB (power ≥ 90 dBm) 50 MHz to 20 GHz, ±2.0 dB (power ≥ 90 dBm) 10 MHz to 20 GHz, ±2.5 dB (power < 90 dBm)

High stability time base for frequency accuracy
Low SSB phase noise for out-of-channel tests
High power output for driving the LO port of mixers
Low output power with option 1E1 for receiver sensitivity and SINAD measurements
