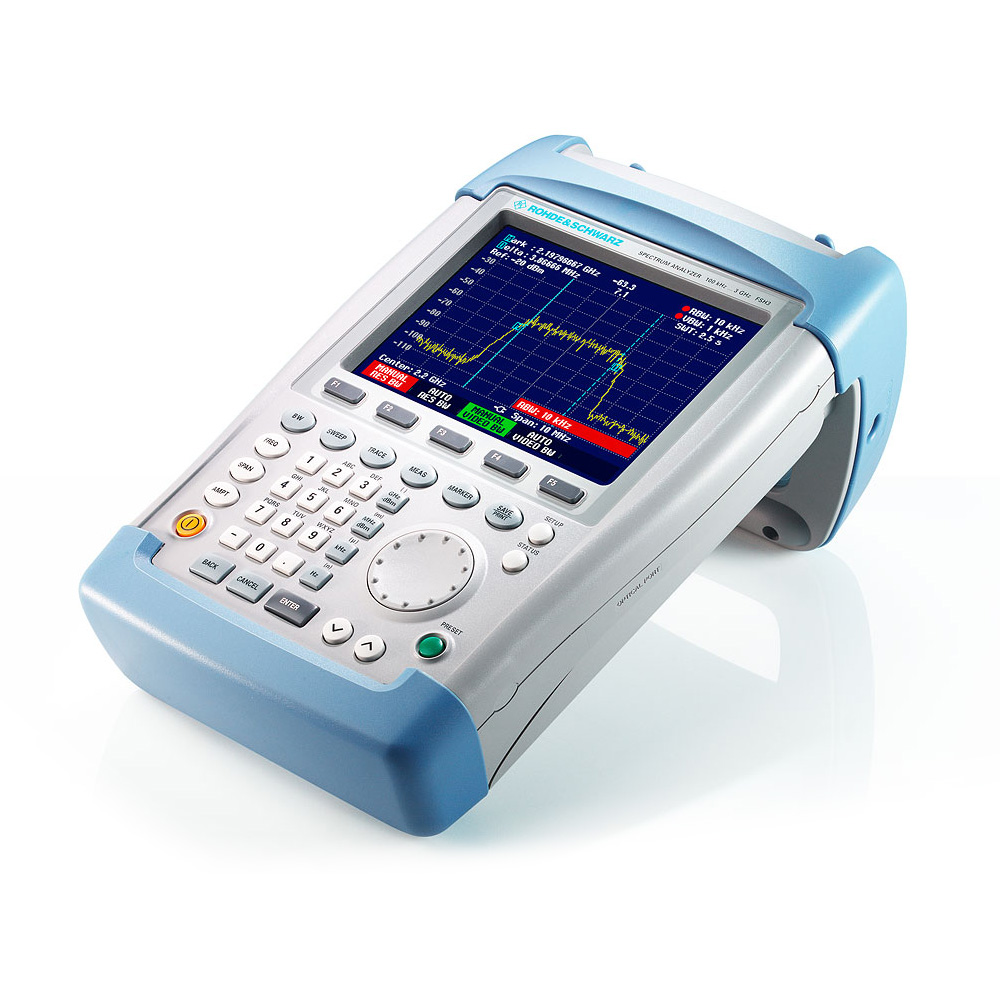

Rohde & Schwarz FSH Series Handheld Spectrum Analyzers

Rohde & Schwarz FSH Series Handheld Spectrum Analyzers

Categories

Spectrum Analyzers

Documents

Brochure

The Rohde FSH Series is the ideal spectrum analyzer for rapid, high-precision, cost-effective signal investigations. It provides a large number of measurement functions and so can handle anything from the installation or maintenance of a mobile radio base station up to on-site fault location in RF cables as well as development and service – an extensive range of applications.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Robust edge protection stable carrying handle
Easy operation
Four hours operating time on battery power
Storage of up to 256 traces and setups
Easy data transfer to PC
High measurement accuracy
Best RF characteristics in its class

Specifications

Applications

Options

Models:

	Frequency range	Tracking generator	Output power of tracking generator	Preamplifier	Resolution bandwidth
FSH3 model .03	100 kHz to 3 GHz	—	—	■	100 Hz to 1 MHz
FSH3 model .13	100 kHz to 3 GHz	■	–20 dBm	—	1 kHz to 1 MHz
FSH3 model .23	100 kHz to	■	–20 dBm/0 dBm, selectable	■	100 Hz to 1 MHz
FSH6 model .06	100 kHz to 6 GHz	—	—	■	100 Hz to 1 MHz
FSH6 model .26	100 kHz to 6 GHz	■	–10 dBm (f < 3 GHz) –20 dBm (f > 3 GHz)	■	100 Hz to 1 MHz
FSH18	10 MHz to 18 GHz	—	—	—	100 Hz to 1 MHz

Options:

FSH-B1	Distance-to-Fault Measurement (includes 1 m cable, FSH-Z2 required)
FSH-K1	Remote Control via RS-232-C
FSH-K2	Vector Transmission and Reflection Measurements
FSH-K3	Receiver Mode
FSH-K4¹⁰	3GPP FDD Code Domain Power BTS/Node B Measurement for R&S^®FSH3 model .23

10) For ¸FSH3 model .23 only, as of serial no. 103500
